Firmware reliability is just as important as hardware quality in industrial display systems. The USB-RTD High-Speed Programmer for LCD Driver Board is developed specifically for programming Realtek RTD series display controller ICs, providing an efficient solution for firmware downloading, batch production, debugging, and field upgrades.
Designed for LCD controller board manufacturers, OEM equipment makers, and engineering teams, this programmer significantly reduces programming time while ensuring firmware integrity across every production batch. It is the ideal companion for customized industrial display solutions.
Unlike general-purpose programmers, the USB-RTD programmer is optimized for Realtek RTD display controller platforms, allowing stable communication with customized controller boards during software development and manufacturing.
Whether programming a single prototype or mass-producing thousands of controller boards, the USB-RTD High-Speed Programmer for LCD Driver Board delivers stable and reliable performance throughout the entire manufacturing process.
Typical production line workflows include:
- Firmware downloading
- Software verification
- Function testing
- Mass production programming
- Firmware version management
- Batch consistency verification
Its stable communication connection minimizes programming failure rates and significantly reduces operator intervention.
Our optimized communication mechanism significantly reduces firmware download time, effectively increasing production throughput while maintaining programming stability.
Developed primarily for firmware programming of Realtek RTD series display controller chips, ensuring perfect compatibility with customized LCD driver boards.

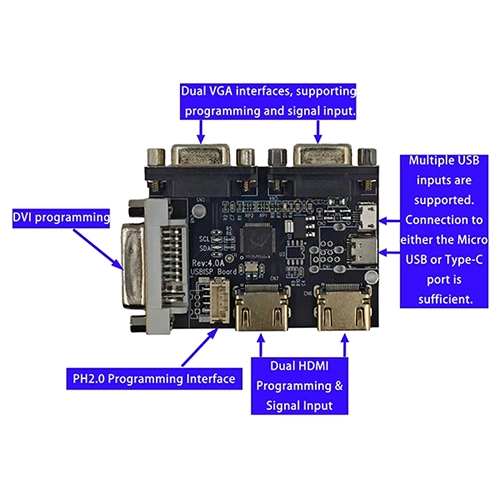

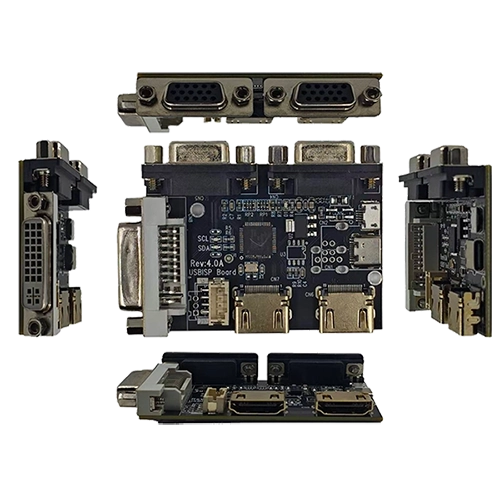

Our programmer supports various connection options to meet the needs of engineering development and mass production. These include dual HDMI programming & signal input, dual VGA interfaces, DVI programming interface, USB Type-C interface, Micro USB interface, and PH2.0 programming connectors. This flexible interface design allows engineers to easily handle different controller board configurations without the need to change programming equipment.
For R&D engineers, our programmer provides a highly efficient platform during the controller board development phase. It assists engineers in tackling various tasks, such as debugging customized firmware, verifying the compatibility of new LCD panels, testing different display resolutions, configuring timing parameters, validating display functions before mass production, and performing firmware upgrades during product development. Ultimately, it effectively shortens R&D cycles and accelerates the time to market for new products.
Reliable firmware programming directly determines the programming efficiency of industrial displays. Using a dedicated USB-RTD High-Speed Programmer for LCD Driver Board helps improve programming efficiency, ensures perfect compatibility with RTD chip-based driver boards, minimizes programming errors, simplifies product maintenance, and ultimately boosts customer productivity.
The USB-RTD High-Speed Programmer follows a straightforward workflow that integrates seamlessly into your development and production processes:
Step 1: Hardware Connection
Connect the programmer to your PC via USB cable, and link the programmer to the target LCD controller board using HDMI, VGA, DVI, or PH2.0 interface --- depending on your board design.
Step 2: Software Setup
Launch the programming software on your PC. Load the firmware file (.bin or .hex format) prepared for your specific LCD panel and application requirements. The software automatically detects the connected RTD controller IC model.
Step 3: Firmware Programming
Initiate the programming process. The programmer writes the firmware to the RTD controller IC's flash memory with verification checks to ensure data integrity. Typical programming time ranges from 5 to 15 seconds per board, depending on firmware size.
Step 4: Verification & Validation
After programming, the system automatically verifies the written firmware against the source file. A pass/fail indicator confirms successful programming. Failed boards are flagged for rework --- reducing the risk of defective boards reaching the production line.
Step 5: Production-Line Integration
For mass production, multiple programmers can be deployed across programming stations. Operators can program controller boards in sequence, with each board typically taking under 20 seconds from connection to completion.
| Method | Programming Time per Board | Setup Time | Suitable For |
| USB-RTD High-Speed Programmer | 5-15 seconds | Under 1 minute | Engineering samples, mass production, field upgrades |
| ISP (In-System Programming) via debug header | 15-30 seconds | 3-5 minutes | Development-phase debugging |
| External Flash Programmer | 30-60 seconds | 5-10 minutes | Pre-assembly flash programming |
| Manual Firmware Copy (SD Card) | 60-120 seconds | 5-15 minutes | Low-volume, maintenance-only |
For a production line programming 500 controller boards per day, the USB-RTD High-Speed Programmer saves approximately 2-4 hours of programming time compared to ISP methods --- directly improving daily production capacity.
The USB-RTD High-Speed Programmer for LCD Driver Board is primarily designed for industrial driver boards based on RTD chips and is not compatible with other display or touch-control boards. It is widely used in various scenarios, including industrial LCD controller board production, medical display firmware programming, customized monitor manufacturing, engineering firmware development, factory software upgrades, production-line programming stations, product maintenance and after-sales service, and display controller verification laboratories.
| Feature | Description |
| Product Type | USB-RTD High-Speed Programmer for LCD Driver Board |
| Target IC | Realtek RTD Series Display Controller |
| Primary Function | Firmware Programming & Upgrade |
| Programming Mode | High-Speed USB Communication |
| Interface | HDMI, VGA, DVI, USB Type-C, Micro USB, PH2.0 |
| Application | RTD chip-based driver boards |
| Development Support | Firmware Debugging & Verification |
| Production Support | Batch Programming |
A: It is designed to program and upgrade firmware for Realtek RTD series display controller ICs used on customized LCD driver boards.
A: Yes. It is suitable for engineering samples, pilot production, and high-volume manufacturing.
A: The programmer supports HDMI, VGA, DVI, USB Type-C, Micro USB, and PH2.0 programming interfaces, depending on the controller board design.
A: Yes. It can be used for firmware maintenance, updates, and product servicing when supported by the target controller board.
A: Yes. Different firmware versions can be programmed to match various LCD resolutions, timing parameters, and application requirements.
A: It is intended for supported RTD-series display controller ICs used in our customized LCD controller board solutions. Please contact us with your controller board model for compatibility confirmation.
A: Yes. Customer-specific firmware can be programmed and verified before shipment, ensuring the boards are ready for immediate integration.
A: Yes. Our engineering team offers firmware programming guidance, controller board integration support, and technical assistance throughout the project lifecycle.
A: Yes. Multiple USB-RTD programmers can be connected to different PCs or a single PC with sufficient USB bandwidth. Each programmer operates independently, allowing parallel programming of multiple controller boards simultaneously --- ideal for high-volume production lines.
A: The programmer includes protection mechanisms to prevent incomplete firmware writes. If interruption occurs, the RTD controller IC can be reprogrammed from the beginning. No special recovery procedure is required --- simply reconnect and restart the programming process.
Looking for a reliable programmer for RTD chip-based driver boards?
Whether you need prototype development, mass production programming, or a complete display solution, our engineering team is ready to assist you.
Feel free to discuss your project requirements with us at any time, and we will provide a comprehensive solution tailored to your project.
