LVDS to EDP Converter Board for Industrial LCD Displays

Many industrial devices continue to use reliable LVDS graphics controllers, while newer LCD panels increasingly adopt the Embedded DisplayPort (eDP) interface. Replacing the entire control platform is often expensive and time-consuming. The LVDS to EDP Converter Board for Industrial LCD Displays from SKY-TDM provides an efficient migration solution by converting standard LVDS video signals into eDP output, allowing OEM manufacturers to integrate modern LCD panels without redesigning their existing hardware architecture.

Designed specifically for industrial applications, this compact converter board delivers stable signal transmission, excellent compatibility, and long-term reliability for automation equipment, medical devices, transportation systems, embedded computers, and intelligent terminals.

Modernize Existing Hardware Without Replacing Your Controller

Many industrial products remain in service for 10-15 years, while LCD technology evolves much faster. As LVDS panels become less available and eDP displays become the industry standard, manufacturers face increasing sourcing challenges.

Instead of redesigning the complete embedded platform, SKY-TDM's converter board acts as an intelligent interface bridge between your existing LVDS controller and the latest eDP LCD modules.

This approach significantly lowers engineering costs, shortens development cycles, and protects your existing hardware investment.

Whether upgrading industrial equipment or designing a new product around an existing processor platform, this converter board provides a reliable and scalable display solution.

Built for Industrial Reliability

Industrial environments demand far more from a converter board than simple signal conversion. To ensure dependable long-term operation, every converter board is built with industrial-grade electronic components and features an optimized PCB (Printed Circuit Board) layout.

Engineering Highlights:

- Stable LVDS differential signal reception

- High-speed eDP signal output transmission

- Optimized impedance matching

- Low EMI (Electromagnetic Interference) design

- Reliable power sequencing

- Industrial-grade temperature-rated components

- Compact PCB design (Measuring only 50 × 50 mm)

- Low power consumption

- Excellent long-term stability

These features help maintain superior image quality during continuous operation while minimizing issues such as screen flicker, signal loss, or synchronization abnormalities.

Flexible LCD Compatibility

Different LCD manufacturers often have varying timing parameters, connector pinouts, and initialization requirements. Instead of offering only fixed standard solutions, we work closely with customers to provide professional engineering support for customized LCD compatibility.

Supported customization services include: resolution configuration, LCD timing optimization, eDP panel parameter adjustment, EDID (Extended Display Identification Data) programming, firmware customization, backlight control optimization, connector adaptation, cable customization, and mechanical integration assistance.

This high level of flexibility allows OEM customers to easily integrate displays from various panel manufacturers with minimal hardware redesign costs.

Typical Application Scenarios

The LVDS to EDP Converter Board for Industrial LCD Displays is widely integrated into various fields, including: industrial automation HMIs, CNC machine interfaces, embedded industrial PCs, medical diagnostic equipment, laboratory instruments, railway control systems, digital signage controllers, self-service kiosks, smart manufacturing equipment, intelligent transportation systems, industrial vision systems, and portable test equipment.

Its compact footprint makes it especially suitable for applications where installation space is limited.

Technical Specifications

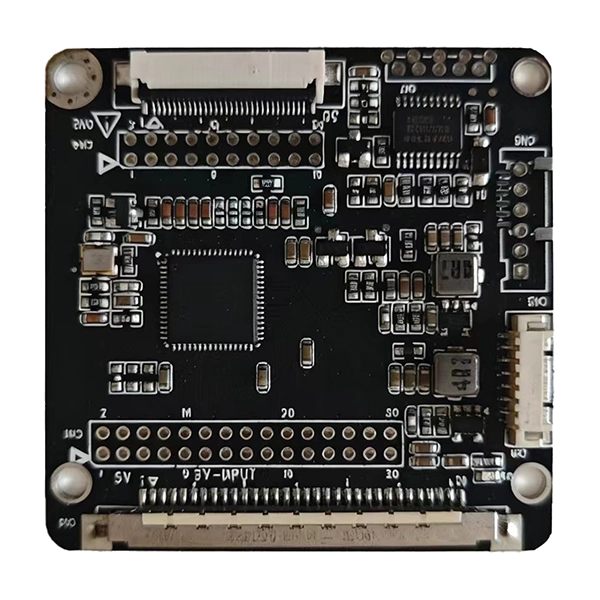

FI-XB30S LVDS Input Interface

JST 2x15 Pin LVDS Input Interface

FFC-30Pin-0.5mm Pitch eDP Output Interface

JST 2x10 Pin eDP Output Interface

CVILUX 6-Pin 2.0mm Backlight Interface

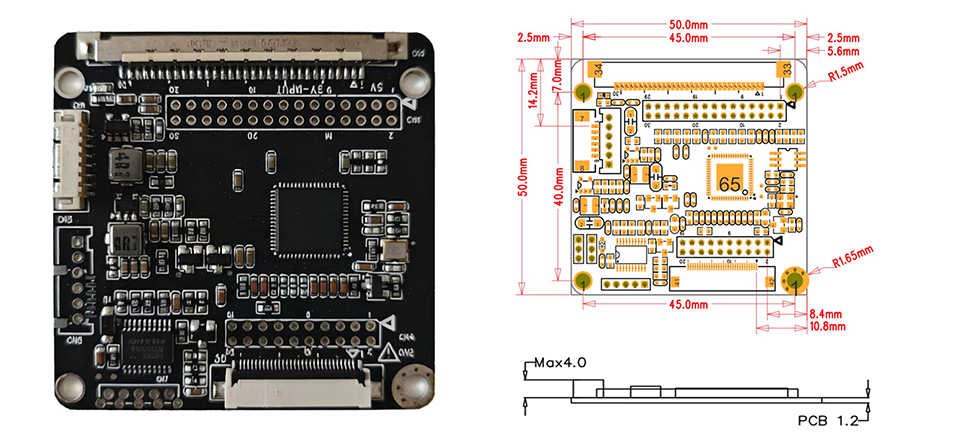

Dimensions

Why Upgrade from LVDS to eDP LCD Panels?

The display industry is steadily transitioning from LVDS to eDP (Embedded DisplayPort) interfaces. Here is why OEM manufacturers are making the switch:

Higher Bandwidth: eDP supports higher resolutions and refresh rates compared to LVDS, enabling 4K and high-frame-rate displays that LVDS cannot handle.

Fewer Cables: eDP uses fewer signal lines than LVDS, reducing internal cable routing complexity and improving EMI performance.

Lower Power Consumption: eDP operates at lower voltages and includes power-saving features, making it ideal for battery-powered and energy-efficient equipment.

Better Image Quality: eDP supports higher color depths and advanced image processing features like panel self-refresh and variable refresh rates.

Future Panel Availability: LCD manufacturers are increasingly phasing out LVDS panels in favor of eDP. Upgrading now ensures long-term panel supply without relying on discontinued LVDS models.

Simplified Integration: eDP uses standard connectors and simpler cabling, reducing assembly time and potential connection errors.

For industrial equipment manufacturers, migrating to eDP panels through our converter board provides a practical path to modern display technology without replacing existing controllers.

Common Migration Scenarios

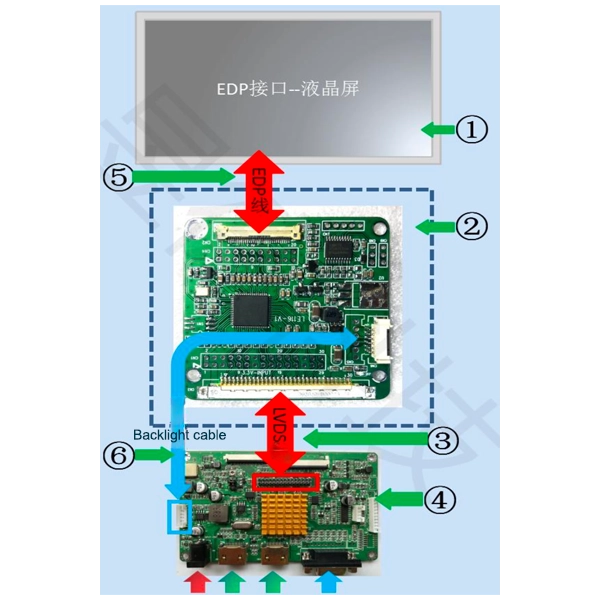

Scenario 1: Legacy Controller with eDP Panel Upgrade

Your existing controller works perfectly but only outputs LVDS. The original LVDS panel is discontinued, and only eDP replacements are available. Install our converter board between the LVDS controller and the new eDP panel --- no firmware changes to the main controller required.

Scenario 2: New Product Development with Existing Processor Platform

Your processor platform supports LVDS output, but the ideal LCD panel for your new product uses eDP. Instead of redesigning the entire mainboard, use our converter board to bridge the interface gap and accelerate time-to-market.

Scenario 3: Multi-Source Panel Procurement

To reduce supply chain risk, you need to qualify multiple LCD panel suppliers --- some offering LVDS, others eDP. With our converter board, you can standardize on one controller output (LVDS) while flexibly sourcing either interface panel.

Scenario 4: Field Upgrade of Deployed Equipment

Your installed base of equipment uses LVDS panels that are becoming difficult to source. Our converter board allows service teams to replace failed LVDS panels with available eDP panels during field maintenance, extending equipment life without costly controller upgrades.

Why Choose US?

Choosing the right supplier is just as important as selecting the right hardware. Unlike distributors that simply ship standard boards, SKY-TDM provides complete engineering collaboration throughout your project.

Our Core Advantages

- Professional Touch Display Manufacturer

- Extensive Experience in Industrial Display Integration

- Customized Firmware Development

- Custom Cable Design Services

- LCD Compatibility Testing

- ISO 9001 Quality Management System Certification

- ISO 13485 Medical Device Quality Management System Certification

- IATF 16949 Automotive Quality Management System Certification

- Rapid Prototyping

- Stable Long-Term Supply

- Comprehensive Technical Support Before and After Production

Our engineering team works closely with OEM customers to reduce development risks and accelerate product time-to-market.

FAQ

Q1: Can LVDS to EDP Converter Board for Industrial LCD Displays support any eDP LCD panel?

A: Most industrial eDP LCDs can be supported after firmware configuration. We recommend providing your LCD model number for compatibility evaluation.

Q2: Is firmware customization available?

A: Yes. Timing parameters, resolution, EDID information, and initialization sequences can all be customized.

Q3: Can you supply matching cables?

A: Absolutely. We manufacture custom LVDS cables, eDP cables, FFC/FPC cables, and complete wiring harnesses.

Q4: Can you help migrate from an obsolete LVDS display?

A: Yes. This is one of the most common applications for this converter board. We can recommend compatible replacement LCDs and configure the converter accordingly.

Q5: Is the converter suitable for continuous industrial operation?

A: Yes. The board is designed using industrial-grade components intended for long-term, continuous operation.

Q6: Do you support small prototype orders?

A: Yes. Engineering samples are available before mass production.

Q7: How long is product availability?

A: Industrial projects often require long product life cycles. We support long-term supply and lifecycle management for OEM customers.

Q8: Does the board support both single-channel and dual-channel LVDS input?

A: Yes. The board supports both single-channel (1-lane) and dual-channel (2-lane) LVDS input configurations. The appropriate configuration is set during firmware customization based on your specific controller and panel requirements.

Q9: What is the maximum resolution supported by this converter board?

A: The board supports resolutions up to 1920×1080 @ 60Hz for single-channel LVDS input and up to 2560×1440 @ 60Hz for dual-channel LVDS input, depending on the panel specifications and cable quality. For higher resolution panels, please contact our engineering team for a compatibility evaluation.
