Industrial equipment often requires different video interfaces depending on the customer's hardware platform. Traditional LCD controller boards usually support only one panel interface, forcing engineers to redesign hardware or purchase multiple controller boards for different projects.

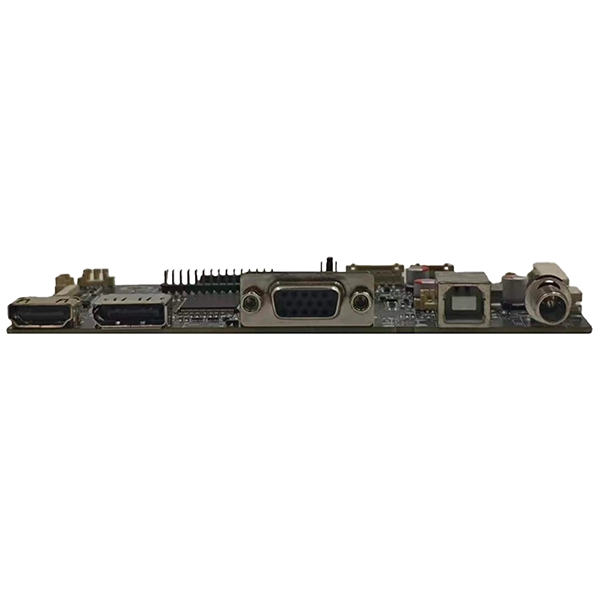

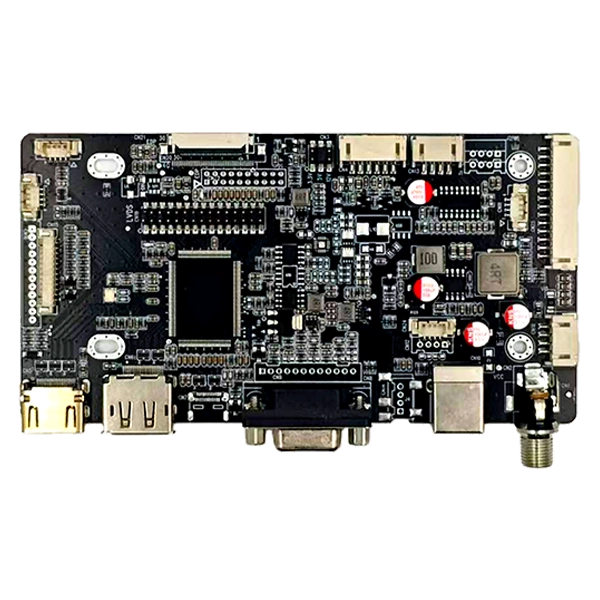

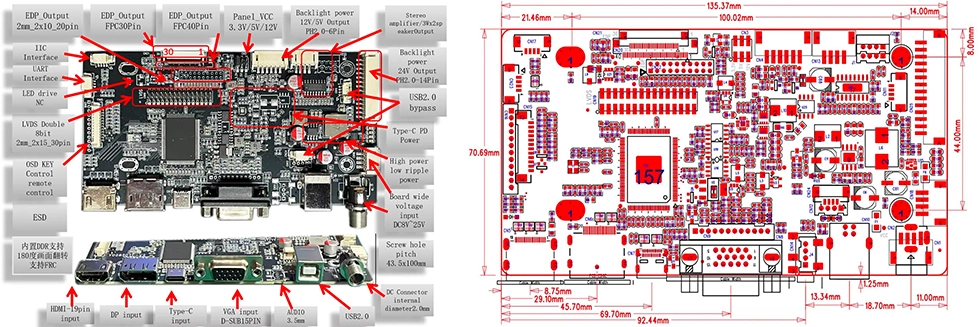

SKY-TDM's HDMI and DP and VGA and Type C To LVDS EDP Interface AD Board eliminates these limitations by integrating HDMI, DisplayPort, VGA and USB Type-C video inputs together with LVDS and eDP display outputs on a single industrial-grade PCB.
Whether you're developing a new HMI, upgrading legacy equipment or integrating an embedded display into industrial machinery, one controller board supports multiple LCD configurations while reducing engineering time, inventory cost and product complexity.
Designed for long-term industrial applications, the board delivers stable image quality, flexible power options and comprehensive peripheral interfaces for OEM equipment manufacturers and system integrators.
This Interface AD Board integrates multiple input options and is fully compatible with today's most common video sources: HDMI, DisplayPort (DP), VGA, and USB Type-C (DP Alt Mode). This allows customers to seamlessly switch between different host platforms without the need for additional converter boards.
This HDMI and DP and VGA and Type C To LVDS EDP Interface AD Board is fully compatible with both mainstream LCD interface standards. Available display output options include dual-channel 8-bit LVDS, 20-pin eDP, 30-pin eDP FPC, and 40-pin eDP FPC. It is ideally suited for a wide range of industrial TFT LCD modules, from 7-inch screens to large-format displays.
Unlike consumer-grade display boards, this HDMI and DP and VGA and Type-C To LVDS EDP Interface AD Board is specifically designed for high-specification and demanding industrial applications. Its core hardware features include a wide DC input voltage (8V-25V), low-ripple industrial power design, enhanced ESD (Electrostatic Discharge) protection, and the use of industrial-grade components to ensure long-term stable operation. It is particularly well-suited for complex environments such as outdoor settings and high-temperature conditions, guaranteeing consistent display stability.
This HDMI and DP and VGA and Type C To LVDS EDP Interface AD Board is widely used in industrial products operating in complex environments. Typical application scenarios include industrial HMI terminals, open-frame touch monitors, CNC machine interfaces, medical diagnostic equipment, and machine vision systems.
Every display project is unique. We provide comprehensive technical support services, including LCD panel compatibility verification, firmware optimization, EDID (Extended Display Identification Data) modification, backlight parameter tuning, custom LVDS and eDP cable design, and PCB logo printing. Whether your project requires a standard controller board or a fully customized solution, SKY-TDM delivers professional engineering support at every stage of the product lifecycle.
| Item | Specification |
| Video Input | HDMI, DisplayPort(DP), VGA, Type-C |
| Display Output | LVDS, eDP (20pin/30pin/40pin) |
| Panel Voltage | 3.3V/5V/12V |
| Backlight Output | 5V/12V/24V |
| Audio | 3W x 2 Amplifier |
| Input Voltage | 8~28V |
| Operating Temperature | -20°C to 80°C |
| Pin | Signal | Pin | Signal |
| 1 | VCC(3.3/5/12V) | 2 | VCC(3.3/5/12V) |
| 3 | VCC(3.3/5/12V) | 4 | NC |
| 5 | GND | 6 | GND |
| 7 | TXO0- | 8 | TXO0+ |
| 9 | TXO1- | 10 | TXO1+ |
| 11 | TXO2- | 12 | TXO2+ |
| 13 | GND | 14 | GND |
| 15 | TXOCLK- | 16 | TXOCLK+ |
| 17 | TXO3- | 18 | TXO3+ |
| 19 | TXE0- | 20 | TXE0+ |
| 21 | TXE1- | 22 | TXE1+ |
| 23 | TXE2- | 24 | TXE2+ |
| 25 | GND | 26 | GND |
| 27 | TXECLK- | 28 | TXECLK+ |
| 29 | TXE3- | 30 | TXE3+ |
| Pin | Signal | Pin | Signal |
| 1 | NC | 2 | GND |
| 3 | eDP3N/3- | 4 | eDP3P/3+ |
| 5 | GND | 6 | eDP2N/2- |
| 7 | eDP2P/2+ | 8 | GND |
| 9 | eDP1N/1- | 10 | eDP1P/1+ |
| 11 | GND | 12 | eDP0N/0- |
| 13 | eDP0P/0+ | 14 | GND |
| 15 | AUX_P/+ | 16 | AUX_N/- |
| 17 | GND | 18 | VCC(3.3/5/12V) |
| 19 | VCC(3.3/5/12V) | 20 | VCC(3.3/5/12V) |
| 21 | VCC(3.3/5/12V) | 22 | NC |
| 23 | GND | 24 | GND |
| 25 | GND | 26 | GND |
| 27 | eDP_HPD | 28 | BK_GND |
| 29 | BK_GND | 30 | BK_GND |
| 31 | BK_GND | 32 | BK_GND |
| 33 | BK-PWM | 34 | BK_EN |
| 35 | NC | 36 | NC |
| 37 | BK_VCC | 38 | BK_VCC |
| 39 | BK_VCC | 40 | NC |
| Pin | Signal | Pin | Signal |
| 1 | NC | 2 | GND |
| 3 | eDP1N/1- | 4 | eDP1P/1+ |
| 5 | GND | 6 | eDP0N/0- |
| 7 | eDP0P/0+ | 8 | GND |
| 9 | AUX_P/+ | 10 | AUX_N/- |
| 11 | GND | 12 | VCC(3.3/5/12V) |
| 13 | VCC(3.3/5/12V) | 14 | NC |
| 15 | GND | 16 | GND |
| 17 | eDP_HPD | 18 | BK_GND |
| 19 | BK_GND | 20 | BK_GND |
| 21 | BK_GND | 22 | BK_EN |
| 23 | BK_PWM | 24 | NC |
| 25 | NC | 26 | BK_VCC |
| 27 | BK_VCC | 28 | BK_VCC |
| 29 | BK_VCC | 30 | NC |
| Pin | Signal | Pin | Signal |
| 1 | VCC(3.3/5/12V) | 2 | VCC(3.3/5/12V) |
| 3 | GND | 4 | GND |
| 5 | eDP0N/0- | 6 | eDP0P/0+ |
| 7 | eDP1N/1- | 8 | eDP1P/1+ |
| 9 | eDP2N/2- | 10 | eDP2P/2+ |
| 11 | eDP3N/3- | 12 | eDP3P/3+ |
| 13 | GND | 14 | GND |
| 15 | AUX_N/- | 16 | AUX_P/+ |
| 17 | GND | 18 | GND |
| 19 | NC/EDP_HPD | 20 | EDP_HPD |
| Pin | Signal |
| 1 | GND |
| 2 | GND |
| 3 | PWM/Vadj |
| 4 | ON/OFF |
| 5 | +12V/5V |
| 6 | +12V/5V |
Hardware supply is just the foundation; service is the guarantee for long-term success. SKY-TDM is committed to accelerating your project launch and completely resolving your supply chain challenges. We provide the following core support:
- Long Product Lifecycle: Stable and reliable mass production capabilities.
- Comprehensive Technical Support: Assistance with LCD compatibility testing and custom signal cables.
- Flexible Production Model: Low MOQ (Minimum Order Quantity) and rapid technical response.
- All-in-One Display Solutions: Touchscreens and LCD panels shipped as a matched set to meet diverse needs.
A: Yes. It is compatible with industrial-grade TFT LCD panels featuring either LVDS or eDP interfaces. We can recommend the appropriate connectors and firmware based on your specific panel model.
A: The board supports HDMI, DisplayPort, VGA, and USB Type-C (with DP Alt Mode), ensuring broad compatibility with various industrial computers and embedded systems.
A: Yes. We offer comprehensive firmware customization services, including timing adjustments, EDID (Extended Display Identification Data) configuration, boot logo customization, and panel parameter optimization.
A: The controller board supports a wide DC input range of 8V to 25V, making it perfectly compatible with both 12V and 24V industrial power supply systems.
A: Yes. We manufacture customized LVDS cables, eDP FPC cables, backlight cables, and power harnesses to ensure plug-and-play integration for our customers.
A: Yes. We support PCB silkscreen logo printing, firmware customization, connector modifications, cable assemblies, and complete ODM development services.
A: LVDS output supports up to 1920×1080 @ 60Hz (dual-channel 8-bit). eDP output supports up to 3840×2160 @ 60Hz (4K UHD), depending on the panel specification and cable quality. For 4K applications, we recommend using the eDP interface for optimal bandwidth.
A: Yes. The board supports 180° image rotation via firmware configuration. For 90°/270° rotation (portrait mode), we can customize the firmware based on your panel and application requirements. Please specify your orientation requirement when placing an order.
Looking for a reliable HDMI and DP and VGA and Type C To LVDS EDP Interface AD Board for your next embedded display project?
To recommend the most suitable solution, please provide the following information when making an inquiry:
- LCD panel model number
- Required video input interface (HDMI, DP, VGA, or USB Type-C)
- Input power voltage
- Backlight requirements
- Estimated annual quantity
- OEM or firmware customization requirements
Our engineering team will review your specifications and provide a compatible solution, technical recommendations, and a quotation within 24 business hours.
