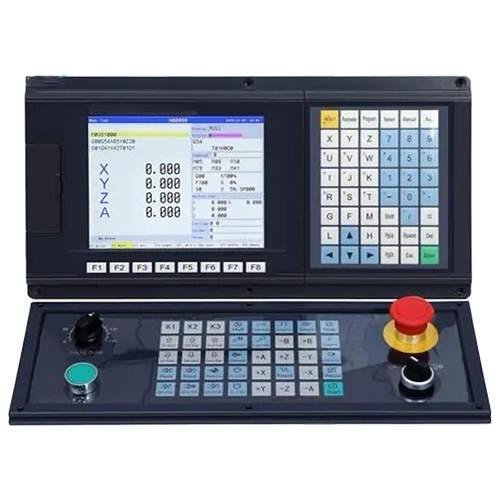

The SKY-TDM 8.4 Inch 4 Wire Resistive Touch Panel is a rugged, high-reliability HMI solution purpose-built for CNC machine tools and industrial automation environments. Optimized for 24/7 continuous factory operation, this standard 4:3 industrial touch panel delivers consistent precision, stable touch response, and outstanding durability against the harsh conditions of machining workshops. It is the ideal upgrade or OEM solution for both modern and legacy CNC control systems.
Available in both Projected Capacitive (PCAP) and Resistive (4-wire and 5-wire) versions, our 8.4 Inch 4 Wire Resistive Touch Panel fully supports glove and stylus operation, along with water-resistant touch algorithms. This ensures reliable human-machine interaction even in the presence of oil mist, dust, metal debris, and mechanical vibration.
With optional full optical bonding, the panel effectively eliminates internal light reflection, improves visibility in bright or outdoor lighting, and enhances display contrast. It also achieves a dust-proof, vibration-resistant, and anti-fog structural performance.

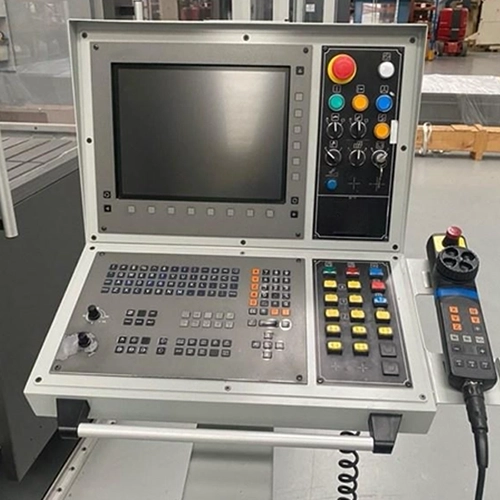

Featuring wide-temperature adaptability, professional industrial EMC anti-interference design, and broad multi-industry compatibility, this touch screen integrates seamlessly with CNC machining centers, milling machines, lathes, grinding equipment, EDM machines, laser cutting systems, and automated PLC control cabinets. It fully meets the long-lifecycle and high-stability supply demands of industrial OEM equipment and machine retrofit projects.
Different from consumer-grade touch displays that are sensitive to environmental interference, our 8.4 Inch 4 Wire Resistive Touch Panel is fully optimized for complex machining workshop scenarios. It stably resists common industrial disturbances including dust accumulation, oil mist erosion, metal particle pollution, long-term mechanical vibration and frequent temperature changes, maintaining zero drift touch accuracy and stable system operation during long-duration continuous production.
Supporting a wide operating temperature range of -20°C to +70°C and storage temperature from -30°C to +80°C, as well as high-humidity non-condensing working conditions, this rugged touch panel completely adapts to unstable factory environment changes.
Equipped with industrial-grade high-hardness cover glass and optional IK-level impact resistance, AG anti-glare, AR anti-reflection and AF anti-fingerprint coatings, the screen effectively resists daily scratch wear, oil contamination and light reflection, greatly reducing equipment maintenance frequency and improving on-site operation efficiency.
This 8.4 Inch 4 Wire Resistive Touch Panel integrates excellent touch performance and industrial reliability, supporting diverse on-site operation needs and equipment integration standards. The resistive version delivers stable pressure sensing, insensitive to environmental humidity and electromagnetic interference, perfectly matching high-precision CNC parameter adjustment and machining control requirements.
Adopting professional industrial EMC anti-interference design, the touch screen effectively shields electromagnetic noise generated by on-site inverters, motors and high-frequency equipment, avoiding touch failure, offset and ghost touch problems. It supports multiple mainstream industrial interfaces including USB, I2C, UART and RS232, with customizable interface definitions and FPC structures to adapt to different industrial controllers and embedded systems, and is fully compatible with Windows, Linux, Android and other industrial operating platforms.
In addition to standard configurations, we support customized cover glass silk-screen printing, brand logo processing, special structural opening and ultra-long lifecycle industrial supply, solving the problem of easy replacement and short service cycle of civilian screens for CNC equipment manufacturers.
As a professional industrial touch screen OEM/ODM manufacturer, SKY-TDM provides one-stop personalized customization services for CNC machine tool and industrial automation projects.
We support full-process customized development including LCD screen matching, touch sensor structural design, cover glass thickness and appearance customization, optical bonding fitting, and internal controller IC selection. For on-site complex working conditions, we can perform targeted optimization such as glove touch sensitivity tuning, wet-water touch stabilization, industrial EMC electromagnetic interference resistance enhancement, and waterproof and dustproof structural upgrading.
We also support firmware program debugging, mechanical structural adaptation and finished display module assembly, providing customers with complete touch display solutions from prototype verification to mass production, which can be seamlessly embedded in new equipment development and old equipment renovation projects.
All 8.4 Inch 4 Wire Resistive Touch Panel undergo comprehensive industrial standardized testing before delivery to ensure long-term stable batch consistency. Our full inspection process covers optical appearance inspection, touch accuracy linearity testing, sensitivity calibration, high and low temperature cycle aging testing, high-humidity durability testing, mechanical vibration testing, ESD electrostatic protection testing and EMI electromagnetic compatibility verification, eliminating product failures such as touch drift, insensitive induction and structural looseness in advance.
The whole production process complies with ISO quality management system standards, with strict incoming material inspection, process monitoring and finished product inspection, ensuring every product can adapt to long-term high-intensity industrial workshop operation and provide reliable quality guarantee for CNC equipment.
SKY-TDM owns a complete industrial touch screen production chain, covering independent R&D, sensor processing, silk-screen printing, optical bonding fitting, LCD module assembly and finished product testing. We have mature mass production capabilities for PCAP capacitive touch screens and multi-type resistive touch screens, serving multiple fields such as industrial automation, CNC machine tools, intelligent manufacturing, marine electronics, transportation equipment, energy systems and commercial intelligent terminals.
With stable supply chain resources and standardized production management, we can flexibly respond to customer sample customization, small-batch trial production and large-batch order demands, providing global customers with cost-effective and high-stability industrial touch display products.

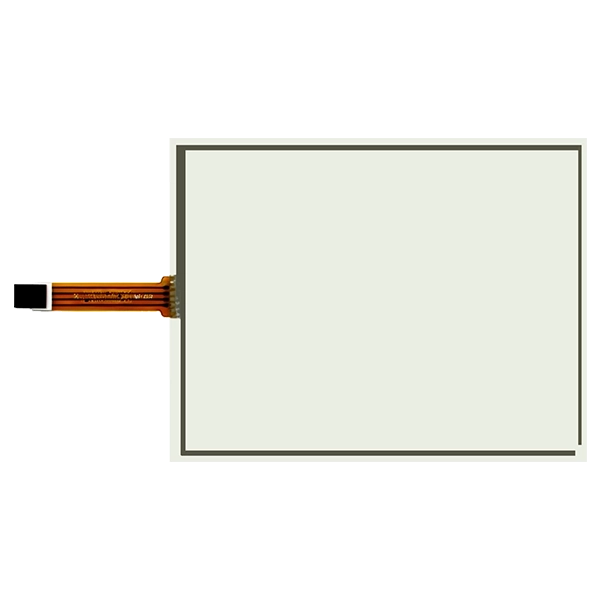

| Parameter | Specification |
| Size | 8.4 inch |
| Aspect Ratio | 4:3 |
| Touch Type | 4-Wire Resistive / 5-Wire Resistive |
| Touch Points | Single-point Pressure Touch (High Precision) |
| Surface Hardness | ≥6H |
| Cover Glass | Custom Thickness, Shape, Logo, AG/AR/AF Coating |
| Operating Temperature | -20°C ~ +70°C |
| Light Transmittance | ≥85% |
| System Compatibility | Windows / Linux / Android / Industrial Embedded Systems |
To ensure high durability and stability for 8.4 Inch 4 Wire Resistive Touch Panel on CNC machines, key issues must be resolved.
First, oil and coolant ingress can damage internal circuits and cause open lines. Robust edge sealing and IP65-rated front panels are essential to block liquids.
Second, constant vibrations and mechanical impacts require shock-absorbing mounting and reinforced structures to prevent structural fatigue.
Third, strong electromagnetic interference from motors can cause touch drift. Proper shielding and filtering circuits stabilize signals.
Fourth, the flexible top film is prone to scratches. Using hardened, wear-resistant coatings extends lifespan.
Finally, temperature fluctuations demand industrial-grade components for reliable operation.
With over a decade of experience in the R&D and manufacturing of industrial touch screens, SKY-TDM has long served industrial automation and CNC equipment manufacturers, accumulating extensive expertise in project customization and on-site adaptation. We provide professional technical support, rapid prototyping, and flexible production with low MOQs, ensuring long-term, stable supply throughout the product lifecycle for industrial equipment.
Backed by comprehensive after-sales service and technical support, SKY-TDM is committed to becoming a trusted, long-term partner for OEMs of industrial display components.
A: Yes. This touch panel is professionally customized for CNC machining centers, milling machines, lathes, grinders, EDM equipment, and industrial HMI control systems. It is fully adapted to harsh workshop environments and long-term continuous operation.
A: Yes. We provide optional PCAP multi-touch, 4-wire resistive, and 5-wire resistive solutions to meet the specific requirements for precision, cost, and application scenarios in various CNC projects.
A: Yes. Both our optimized industrial-grade PCAP and resistive solutions support stable glove touch and stylus operation, fully accommodating the daily operational habits of workshop personnel.
A: Absolutely. We support comprehensive cover glass customization, including thickness adjustments, special shape cutting, brand logo silk-screen printing, functional coatings such as AG (anti-glare), AR (anti-reflection), and AF (anti-fingerprint), as well as IK-level impact resistance reinforcement.
A: Yes. We offer one-stop services covering LCD selection, touch panel fitting, optical bonding, and module assembly, delivering finished products ready for direct installation on equipment.
A: Yes. We are committed to long-lifecycle product supply for our industrial customers, avoiding frequent model replacements and ensuring stable batch supply for mass production equipment.
A: Yes. We offer comprehensive customized solutions ranging from structural design, performance optimization, and firmware debugging to finished product assembly, serving both new product development and legacy equipment retrofit projects.
If you need a standard 8.4 Inch 4 Wire Resistive Touch Panel or customized touch display solutions specifically designed for CNC machine equipment, please contact SKY-TDM's professional engineering team. We provide free technical consultation, solution matching, and sample testing services for global CNC machine tool manufacturers.
Factory Address: No. 39, Tangkeng 2nd Road, Tangkeng Community, Biling Sub-district, Pingshan District, Shenzhen
Year Established: 2009
Factory Scale: Area of 3,000+ square meters / 50+ employees
Key Certifications: ISO9001, ISO13485, IATF16949
