Industrial automation demands equipment that operates continuously in dusty, oily and high-interference environments. Unlike consumer devices, industrial panel PCs require touch interfaces that remain responsive even after years of intensive use.

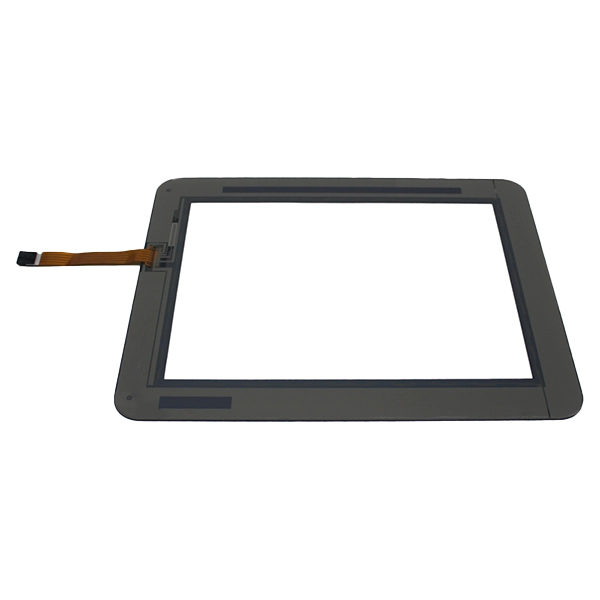

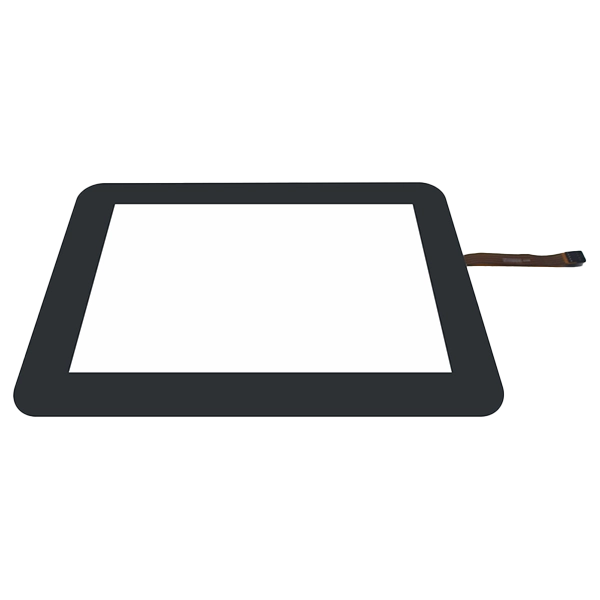

Our 12.1 Inch 5 Wire Resistive Touch Panel is specifically engineered for fanless industrial panel PCs, providing precise single-touch operation while maintaining exceptional durability under demanding working conditions.
Whether operators wear safety gloves, use a stylus, or interact with the screen using fingers, the touch response remains fast and reliable.
As an experienced industrial touch screen manufacturer, SKY-TDM supplies customized resistive touch solutions for automation equipment, industrial HMI terminals, machine control systems, CNC controllers and embedded industrial computers.
Fanless industrial PCs rely on passive heat dissipation, featuring high internal operating temperature and fully enclosed structure, which puts higher requirements on touch panel temperature resistance, stability and airtightness. Our products are professionally optimized for fanless equipment to solve industry-specific pain points.
Selected high-stability raw materials resist structural deformation and parameter drift caused by long-term high-temperature operation inside fanless equipment. The touch accuracy remains consistent without offset or failure during long-time continuous operation.
Factory equipment such as frequency converters, motors and switching power supplies generates strong electromagnetic noise. Our touch panel is optimized with professional anti-EMI circuit design and stable controller configuration, effectively avoiding false touches, touch failure and signal loss.
It stably recognizes pressure input from various industrial protective gloves, including safety rubber gloves, cotton labor gloves and latex gloves, meeting the daily operation habits of factory workers without triggering insensitive touch or missing clicks.
The integrated sealed structure effectively isolates metal dust, workshop oil mist, coolant splashes and chemical residues. It maintains sensitive and accurate touch response in polluted industrial environments, reducing equipment failure rates.
We provide one-stop industrial customization services tailored to your equipment design and application scenarios, comprehensively meeting personalized project requirements:
| Customization | Details |
| Optical Performance Customization |
- AG (Anti-Glare) Coating: Eliminates factory light reflections, improving display visibility in outdoor and bright-light environments. - AR (Anti-Reflection) Coating: Increases light transmittance, enhancing display clarity. - AF (Anti-Fingerprint) Coating: Reduces stain adhesion, facilitating daily cleaning and maintenance of the equipment. |
| Surface Durability Upgrade |
- Scratch-Resistant PET Layer: Provides exceptional scratch protection. - Chemical-Resistant Coating: Effectively resists corrosion from various chemicals. - Wear-Resistant Surface Treatment: Specifically designed for long-term, high-frequency operation scenarios. |
| Mechanical Structure Customization |
- Outline & Size Customization: Supports custom outline dimensions and cover glass sizing. - FPC Customization: Supports customization of FPC (Flexible Printed Circuit) length, routing direction, and connectors. - Structural Adaptation: Supports custom mounting hole positions and overall structural adaptation. - Industrial Adhesive Solutions: Provides high-viscosity industrial adhesive lamination solutions. |
| Electrical Performance Optimization |
- Industrial-Grade Controllers: Optional USB / RS232 interface controllers available. - Firmware Tuning: Supports firmware debugging for customized controller PCBs. - EMC Debugging: Provides professional Electromagnetic Compatibility (EMC) debugging services. |
This 12.1-inch 5-wire resistive touch panel is widely applicable to various fanless industrial control equipment and automated production scenarios:

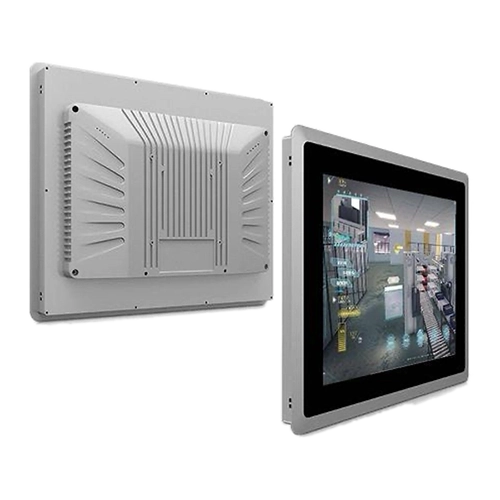

- Fanless Industrial Panel PCs & Embedded Industrial Computers

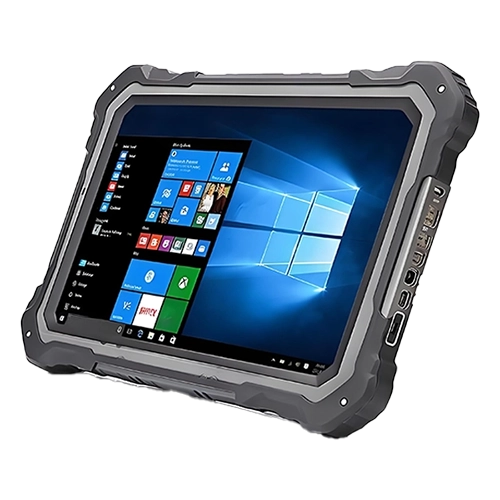

- Industrial HMI Operation Terminals & PLC Control Systems

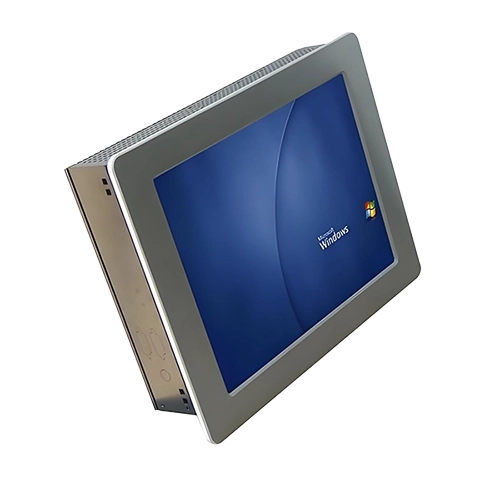

- CNC Machine Controllers & Precision Processing Equipment
- Packaging, Textile & Food Processing Machinery
- Semiconductor Production & Testing Equipment
- Warehouse Logistics & Production Line Automation Systems
Unlike traditional 4-wire resistive screens, the 5-wire structure routes the sensing voltage through the fixed glass substrate rather than the flexible top film. This core structural upgrade completely eliminates touch drift caused by aging and significantly extends the product's service life, making it the preferred touch solution for the long-term, stable operation of industrial equipment.
It offers the following core advantages:
- Ultra-Long Service Life: Maintains permanent accuracy with zero touch drift even after millions of press activations.
- Full-Scenario Input Support: Perfectly compatible with bare fingers, industrial gloves, cotton gloves, latex gloves, and professional styluses.
- Harsh Environment Resistance: Features outstanding dustproof, oil-proof, and splash-proof performance, easily adapting to polluted factory environments.
- Superior EMC/EMI Anti-Interference: Effectively resists electromagnetic noise interference from inverters, motors, and PLC equipment.
- Low-Power Design: Perfectly aligns with the low-power requirements of fanless industrial PCs.
- Exceptional Cost-Effectiveness: A mature industrial-grade solution featuring low maintenance costs and easy large-scale integration.
- Versatile Compatibility: Supports dual USB/RS232 interfaces for seamless matching with mainstream industrial control motherboards.
- 24/7 Continuous Operation: Provides stable output to meet the demands of long-term, uninterrupted industrial operations.
| Item | Specification |
| Size | 12.1 Inch 5 Wire Resistive Touch Panel |
| Touch Type | Single Touch |
| Input Method | Finger, Industrial Glove, Stylus |
| Interface | USB / RS232 (Optional) |
| Surface Hardness | ≥3H |
| Light Transmittance | Up to 80% |
| Operating Temperature | -20°C ~ +70°C (Customizable) |
| Custom Service | Full OEM / ODM Customization Supported |
SKY-TDM is a professional manufacturer specializing in the R&D and production of industrial and medical-grade touch screens. We operate independent production lines and maintain a comprehensive quality control system.
- Professional production lines for both resistive and capacitive touch screens.
- Support for small-batch prototyping and large-scale mass production.
- Strict incoming material inspection combined with 100% full-function testing prior to shipment.
- End-to-end OEM/ODM custom development support.
- ISO 9001: Quality Management System Certification
- ISO 13485: Medical Device Quality Management System Certification
- IATF 16949: Automotive Quality Management System Standard
- 10+ years of professional industrial touch screen manufacturing experience
- Full in-house production, no middlemen, stable supply chain
- Flexible customization capabilities to adapt to diverse project needs
- Fast engineering technical response and prototype delivery
- Strict industrial-grade quality control system
- Cost-effective OEM pricing and long-term stable supply service
- Professional after-sales and global project technical support
A: Yes. It is perfectly compatible with all common industrial protective gloves, delivering stable and sensitive pressure-based touch input without any missed or unresponsive touches.
A: Absolutely. It is specially engineered for industrial long-term continuous operation, with anti-aging and anti-drift design to ensure stable performance for years.
A: Yes. We provide comprehensive customization services, including outline dimensions, cover glass, FPC (Flexible Printed Circuit) length and routing direction, mounting structures, and controller parameters.
A: Standard USB and RS232 industrial interfaces are available and can be matched according to your host system and controller requirements.
A: Yes. Its sealed structural design effectively resists oil mist, dust, water splashes, and various industrial contaminants, ensuring stable touch performance even in harsh factory environments.
A: The standard version supports industrial wide-temperature operation from -20°C to +70°C. For special application scenarios, ultra-wide temperature solutions can also be customized.
A: Yes. We provide one-stop customized services ranging from structural design and electrical optimization to firmware debugging and mass production delivery.
Looking for a reliable 12.1 Inch 5 Wire Resistive Touch Panel for your fanless industrial panel PC or automation project? Our professional engineering team will provide targeted solution matching and technical support according to your application scenarios.
Please provide the following project information for an accurate quotation:
- LCD model or touch panel dimensional drawing
- Required interface (USB / RS232)
- Operating temperature and working environment
- Surface treatment requirements (AG/AR/AF)
- Mechanical customization needs (FPC, mounting holes, etc.)
- Annual demand and project cycle
- Specific application equipment
Contact SKY-TDM now to get fast technical evaluation, prototype support and stable long-term bulk supply service!
