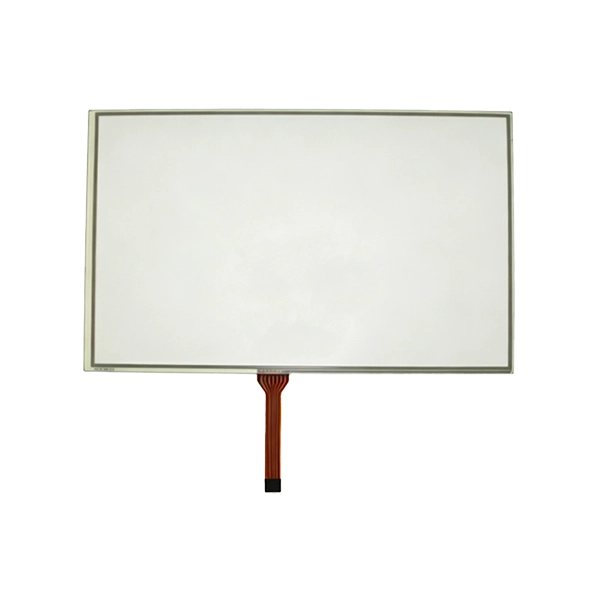

Our 10.1 Inch 8 Wire Resistive Touch Panel is purpose-built for construction machinery, heavy equipment, agricultural vehicles, mining machinery, cranes, excavators, wheel loaders and other off-highway industrial vehicles.
Unlike consumer-grade touch panels, heavy machinery operates amid persistent vibration, mud, rain, oil contamination, dust and extreme temperature fluctuations. Operators commonly wear thick work gloves and demand consistent, dependable touch performance regardless of harsh site conditions.
Our industrial 8-wire resistive touch solution addresses these rigorous challenges via reinforced sensor construction, high-durability raw materials, optimized EMC performance and extended service lifespan. It delivers precise single-touch input reliably in outdoor harsh environments where capacitive touch panels often suffer unstable operation.
SKY-TDM delivers full-spectrum customization services, including cover lens engineering, optical bonding, touch controller calibration, interface adaptation, anti-glare treatment, waterproof sealing and mechanical integration support.
Heavy equipment prioritizes uncompromising operational reliability over consumer-oriented multi-touch functionality.
Compared to conventional 4-wire resistive and capacitive touch panels, the 8-wire resistive architecture brings key advantages:
• Superior touch positioning accuracy
• Long-term calibration stability
• Native support for glove operation
• Compatible with bare fingers, styluses and rigid tools
• Enhanced anti-vibration performance
• Reduced long-term maintenance expenditure
• Stable performance under heavy EMI interference
• Adaptable to dusty and damp working scenarios
For construction equipment operators wearing work gloves during continuous HMI interaction, resistive touch remains the preferred technology. It relies on pressure activation instead of electrical conductivity, eliminating the limitations of capacitive touch in field conditions.

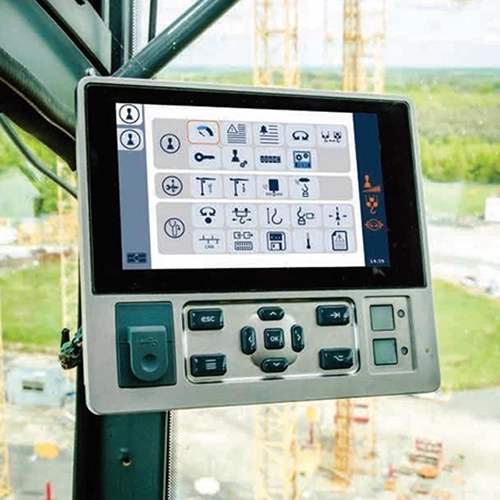

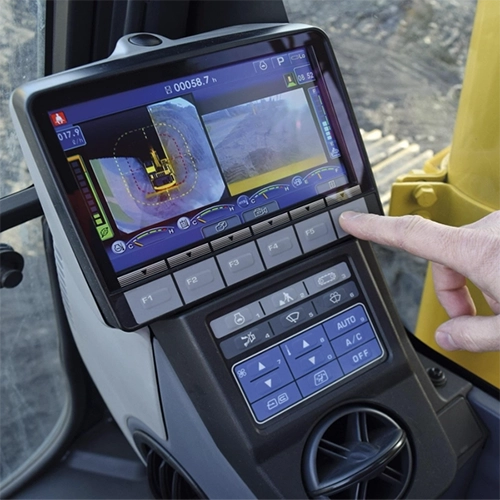

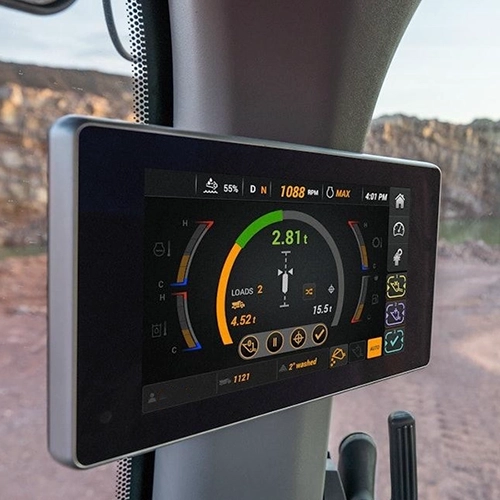

Our 10.1 inch 8 wire resistive touch panel is widely integrated into: Excavators & Wheel Loaders & Bulldozers & Mobile Cranes & Road Rollers & Concrete Pump Trucks & Mining Equipment & Drilling Rigs & Agricultural Machinery & Industrial Forklifts etc.
A touch panel is only one component of the complete HMI system. To guarantee years of trouble-free field operation, the full touch module must be engineered to match on-site environmental conditions.
| Requirement | Recommended Specifications / Optimized Design Features |
|
Wide Operating Temperature Range (Construction machinery runs year-round in variable climates) |
• Operating Temperature: -30°C ~ +80°C • Storage Temperature: -40°C ~ +85°C • Industrial-grade touch controller • Low-temperature resistant PET substrates |
|
Outstanding Vibration & Shock Resistance (Excavators, road rollers and drilling rigs generate constant mechanical vibration) |
• Reinforced FPC construction • High-strength structural adhesive • Controller anti-loosening mounting design • Vibration-resistant connectors • Strengthened flexible tail cabling |
|
Front Waterproof & Dustproof Construction (Construction equipment works exposed to the open air) |
• Minimum front panel rating: IP65 • Optional upgraded IP67 sealing solution • Precision-engineered waterproof gaskets • Edge dust-sealing structure • Built-in water drainage design • UV-stabilized surface materials |
|
Reliable Glove Operability (Field operators frequently use various gloves) |
• Safety work gloves • Leather gloves • Thermal winter gloves • Rubber protective gloves |
|
Extended Durability (Service life of construction machinery usually exceeds 10 years) |
• Over 35 million touch activations • Hard scratch-resistant surface coating • Wear-proof PET layer • UV-resistant materials • Long-lifespan flexible cables |
| Robust EMI / EMC Performance |
• EMI shielding structure • Optimized grounding layout • Onboard filtering circuitry • Stabilized embedded firmware • Comprehensive ESD protection |
|
Sunlight Readability (Outdoor deployed equipment demands clear visibility under direct sunlight) |
• Full optical bonding • Anti-Glare (AG) coating • Anti-Reflection (AR) coating • High-brightness LCD pairing • UV-resistant cover lens • Suppressed internal panel reflections |
|
Robust Mechanical Structure (Construction vehicles face continuous impact, heavy dust and oil pollution) |
• Heavy-duty industrial front bezel • Reinforced metal mounting frame • Strengthened mounting holes • Customizable gasket thickness • Industrial structural bonding • Protective routing for flexible cables |
| Item | Specification |
| Size | 10.1 Inch |
| Touch Technology | 8-Wire Resistive |
| Interface | USB/RS232/IIC |
| Surface Hardness | ≥3H |
| Light Transmittance | ≥80% |
| Operating Temperature | -30°C ~ +80°C |
| Actuation Force | Customizable |
| EMC | Industrial EMC Optimized Design |
| ESD Protection | Compliant with IEC Standards |
| Touch Lifespan | ≥35 Million Activations |
| Cover Glass | Customized Available |
| Controller | Industrial Grade |
| OEM / ODM | Fully Supported |
Each model of construction machinery features unique mounting constraints. SKY-TDM provides comprehensive customization options:
- Custom touch sensor dimensions
- Bespoke cover glass design
- Silk-screen border printing & customer logo etching
- Waterproof mechanical structure development
- Custom FPC layout & length
- Tailored connector selection
- Multi-interface options: USB / RS232 / I²C
- Optical bonding service
- Anti-glare & anti-reflection coating
- Enhanced EMI shielding design
- Thickened high-performance PET film
- Wide-temperature controller parameter tuning
- Matching with high-brightness LCD panels
- Mechanical frame design technical support
Every touch panel undergoes rigorous in-house quality verification:
- 100% function testing
- Touch accuracy & linearity calibration
- Waterproof sealing inspection
- High / low temperature cycling test
- Vibration & shock testing
- ESD immunity testing
- EMI performance validation
- Optical appearance inspection
- Continuous ageing testing
- Packaging drop impact test
Ensure the products arrive at the customer in perfect condition.
As a professional industrial touch screen manufacturer, SKY-TDM offers flexible one-stop OEM and ODM services tailored to customer needs. With extensive project experience in heavy-duty off-highway equipment, we provide comprehensive services including LCD selection, touch panel design, and optical bonding. Backed by over 10 years of manufacturing experience in the industrial sector, we ensure a stable supply chain and rapid technical support. Furthermore, our ISO-certified quality management system completely eliminates any after-sales concerns for our clients.
A: Because the operating environment for construction machinery is particularly complex and variable. In such conditions, resistive touch screens offer superior stability compared to capacitive screens, ensuring reliable operation in any demanding environment.
A: Yes. Utilizing wide-temperature materials and industrial-grade controllers, it supports operation down to -30°C. Furthermore, further low-temperature tuning can be implemented according to specific project requirements.
A: Absolutely. By reinforcing the Flexible Printed Circuit (FPC), using industrial-grade structural adhesives, and optimizing controller mounting, its anti-vibration performance in heavy machinery applications is significantly enhanced.
A: Yes. The pressure-driven resistive touch screen works seamlessly with thick work gloves, styluses, and other non-conductive tools, requiring no additional hardware adjustments.
A: Fully customizable. We provide tailored dimensions, custom interfaces, bespoke cover glass, customized cable layouts, logo printing, and comprehensive technical support for mechanical integration.
A: Yes. The touch system is built with an industrial-grade EMC architecture, integrating electromagnetic shielding, optimized grounding, and built-in ESD (Electrostatic Discharge) protection to ensure stable operation in high-interference vehicle environments.
A: It is perfectly suited for construction machinery, mining equipment, agricultural machinery, forestry vehicles, industrial off-highway vehicles, marine control systems, and outdoor automation equipment.
A: Yes. Beyond standalone touch panels, we offer comprehensive services including LCD matching, optical bonding, controller board integration, custom cover glass, and finished display modules tailored specifically for industrial and construction machinery.
Ready to source reliable 10.1 inch 8 wire resistive touch panel for your construction machinery? Send us your detailed requirements including size, interface, sealing grade and temperature specifications. SKY-TDM delivers flexible customization, timely sampling and stable mass production. Contact us to start your project discussion.
