Self-service kiosk deployments increasingly use 21.5-inch displays as the standard format for public-facing transactions. Unlike smaller 15-inch screens that force users to scroll through menus or zoom into forms, a 21.5-inch panel displays complete ordering interfaces, full ticket selection views, and multi-step registration forms without scrolling---reducing transaction time and improving user completion rates.
Our 21.5 Inch Open-Frame Touchscreen Monitor is built specifically for these large-format kiosk applications. We have supplied this display to kiosk manufacturers for deployment in quick-service restaurant ordering stations, retail self-checkout systems, and airport check-in kiosks across North American and European markets.
The 1920×1080 Full HD resolution ensures crisp display of menu items, product images, and interactive forms. The 16:9 widescreen format matches modern kiosk software designed for large-format displays---no scaling artifacts or interface cropping. PCAP multi-touch supports gesture-based navigation like swipe and pinch, while resistive touch options provide reliable operation for gloved use in industrial or outdoor kiosk environments.
Unlike smaller displays that require users to scroll through menus or switch between screens to complete transactions, the 21.5-inch format displays all necessary information at once, streamlining the user journey from start to finish.
Unlike consumer monitors, this industrial open-frame monitor is designed for continuous 24/7 operation, making it suitable for unattended kiosks installed in airports, shopping malls, hospitals, banks, supermarkets, parking systems, and government service centers.

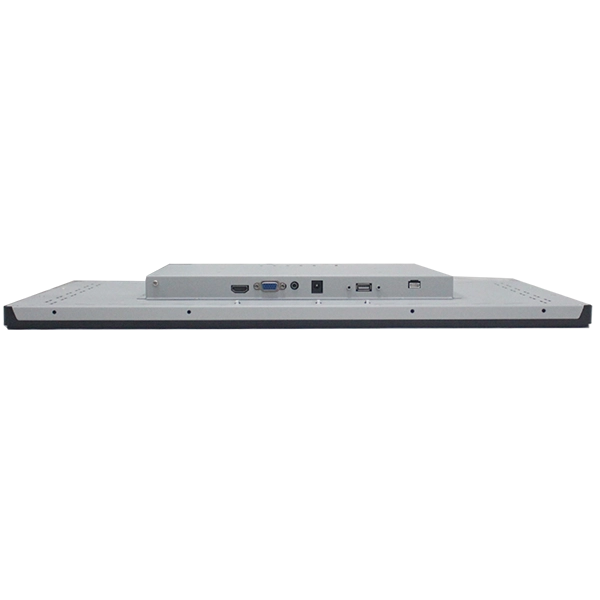

Its open-frame architecture simplifies installation into kiosk cabinets while maintaining a clean and premium appearance. Multiple signal interfaces including HDMI, VGA, USB Touch, Audio, and DC power provide compatibility with virtually all industrial PCs and embedded controllers.
To meet different customer projects, SKY-TDM also offers complete customization services including:
- Projected Capacitive (PCAP) multi-touch
- 5-wire resistive touch
- Optical bonding
- Anti-glare (AG) glass
- Anti-fingerprint (AF) coating
- Anti-reflection (AR) treatment
- High brightness up to 1500 nits
- IK impact-resistant cover glass
- Waterproof front IP65 design
- Custom logo printing
- Custom cable lengths
- Customized mounting brackets
- Wide operating temperature
- EMC optimization
- Industrial motherboard integration
Every monitor is designed with long product lifecycle support, allowing OEM customers to maintain consistent production without frequent mechanical redesign.

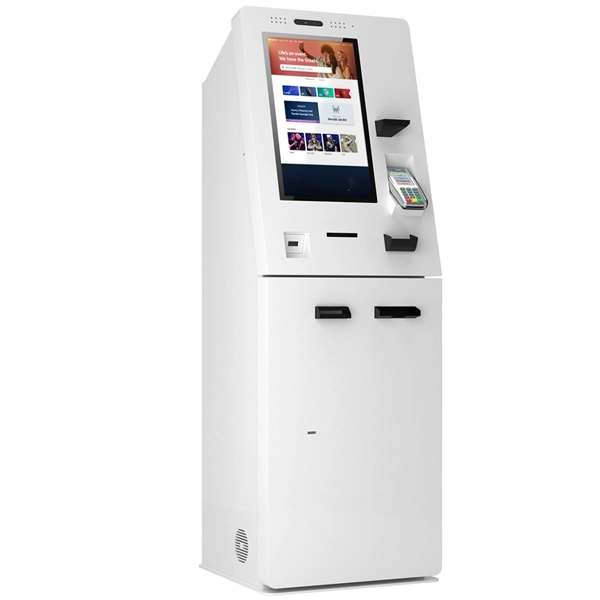

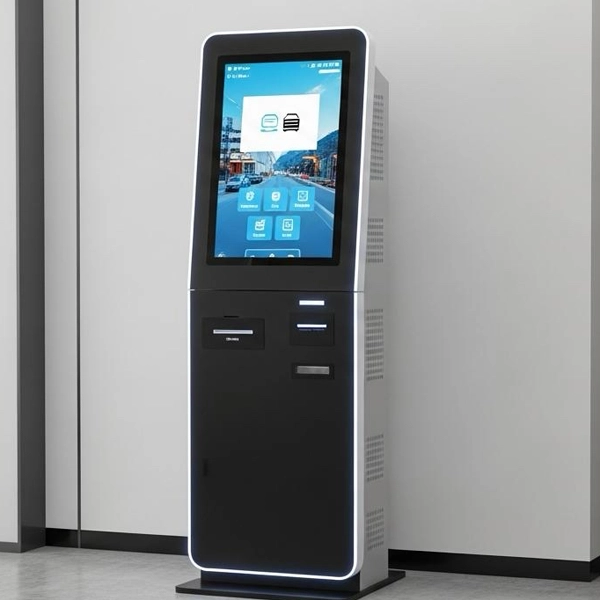

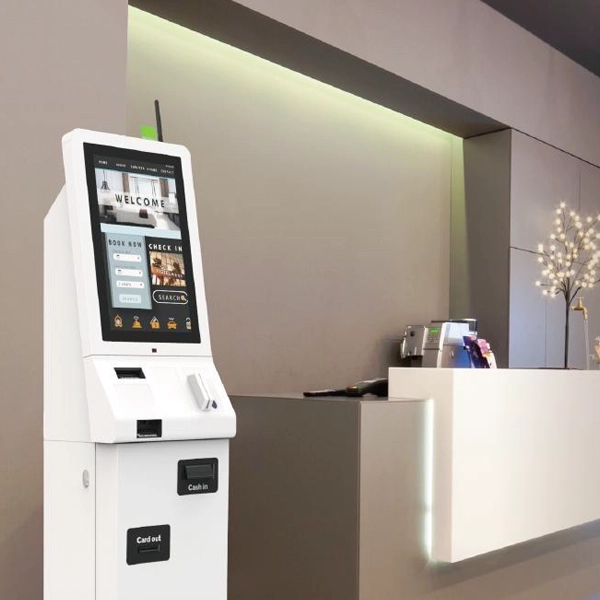

The 21.5 Inch Open-Frame Touchscreen Monitor is widely deployed in various applications, including self-ordering restaurant kiosks, retail self-checkout systems, shopping mall information kiosks, hotel self check-in terminals, hospital registration kiosks, parking payment machines, airport check-in systems, ticket vending machines, banking service terminals, government self-service kiosks, visitor management systems, and interactive digital signage.
To address the real-world challenges of self-service kiosk applications, we ensure reliable operation in high-traffic public areas by rigorously selecting core components, including industrial-grade LCD panels, customized industrial touchscreens, and driver boards. To deliver a seamless and responsive user experience, our optimized touch firmware provides smooth gesture recognition and rapid response, ensuring flawless operation in scenarios such as payments, ordering, and information retrieval. For enhanced durability against intensive use, we offer optional chemically strengthened cover glass, IK-rated impact protection, and anti-scratch surface treatments.
To guarantee clear readability under variable outdoor lighting conditions, we utilize high-brightness LCD panels combined with anti-glare (AG) and anti-reflective (AR) treatments, significantly improving screen visibility in shopping malls, glass entrances, and semi-outdoor environments. Through meticulous product design, the selection of premium-grade materials, and software optimization, we have comprehensively resolved a wide range of challenges in kiosk applications.
| Item | Specification |
| Size | 21.5 Inch |
| Resolution | 1920 x 1080 |
| Panel Type | Industrial LCD |
| Touch Options | PCAP / 5-wire Resistive Touch |
| Standard Interface | HDMI, VGA, DVI, DP, USB Touch, DC 12V |
| Optional Upgrade | IP65 Front Panel, Optical Bonding, AG/AR/AF Glass, High Brightness |
| Support | Full OEM / ODM Customization |
- 60% more interface area than 15-inch displays---users see complete menus without scrolling
- Full HD 1920×1080 resolution for crisp product images and transaction forms
- 16:9 widescreen format matches modern kiosk software layouts
- Multi-step forms display entirely on one screen, reducing transaction abandonment
- 24/7-rated industrial LCD with 50,000+ hour LED backlight life
- Optional IK-rated cover glass resists impact from dropped items and casual contact
- Anti-scratch surface coating withstands daily public interaction and cleaning
- IP65 front sealing for dust and moisture protection in semi-outdoor locations

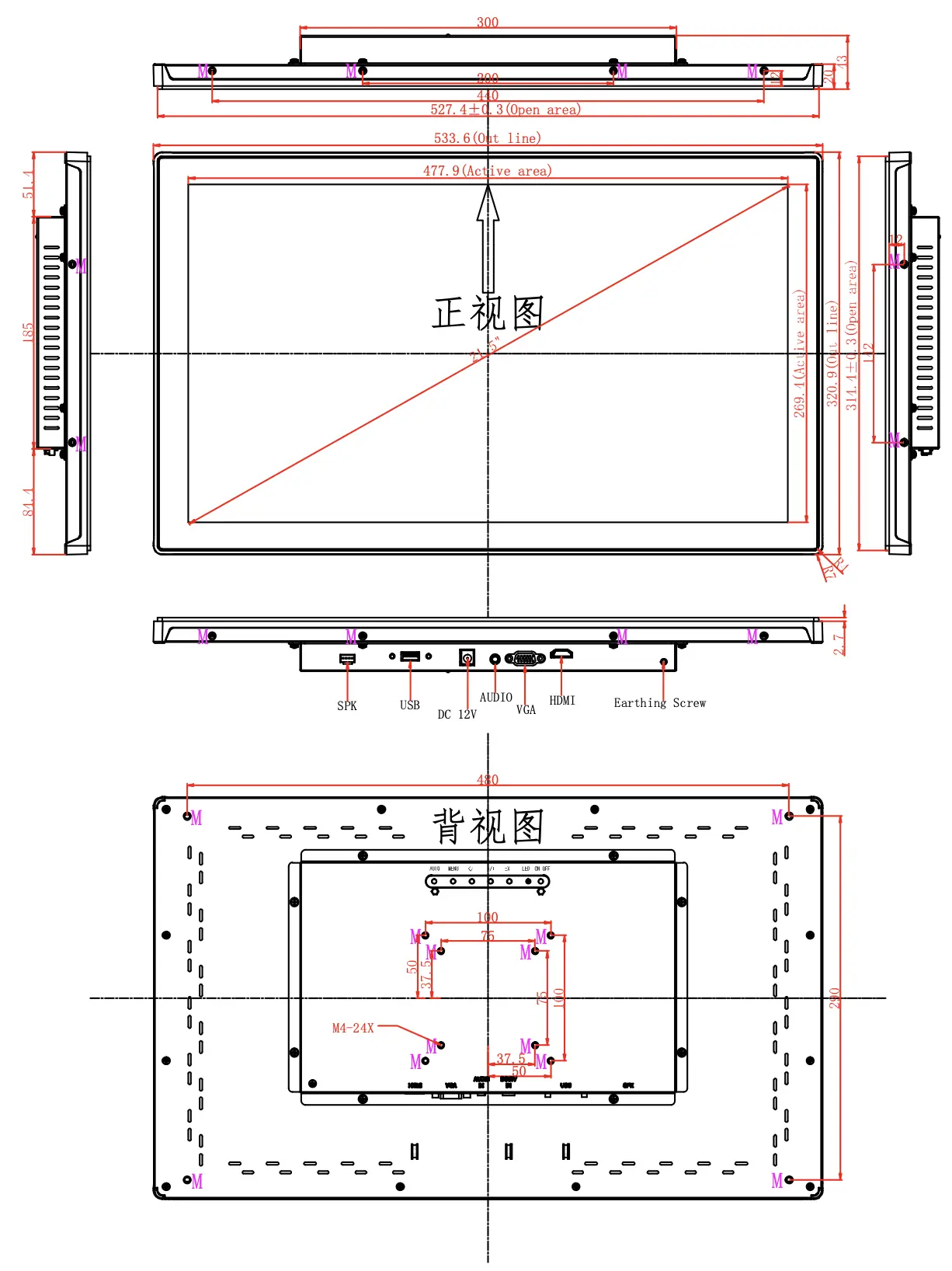

- Open-frame metal chassis with multiple mounting hole patterns
- Customizable bezel width to match kiosk cabinet aesthetics
- Flexible cable exit positions (bottom, rear, or side) for internal cable management
- Slim profile minimizes depth requirements inside kiosk enclosures
- Optional 1500 nits high brightness for glass-front kiosks and covered outdoor installations
- Anti-glare (AG) and anti-reflective (AR) coatings for shopping mall lighting
- Optical bonding reduces internal reflection and improves contrast
- UV-resistant cover glass prevents yellowing from sunlight exposure
Reliability is critical for unattended public kiosks. Every monitor undergoes rigorous testing prior to shipment:
• 100% touch accuracy calibration
• LCD pixel and display uniformity inspection
• Full interface communication verification
• Extended continuous ageing burn-in test
• Vibration and dimension validation
• Appearance and protective packaging inspection
All production follows standardized quality procedures to guarantee consistent batch performance for commercial and industrial deployment.
A: A 21.5-inch panel provides 60% more usable interface area than 15-inch screens. Users can view full menus without scrolling, complete multi-step forms on one screen, and see product images alongside descriptions. This reduces transaction time and improves user completion rates in high-traffic environments.
A: Not directly. However, we provide custom mounting adapters and can adjust bezel dimensions to fit 21.5-inch panels into enclosures originally designed for 15-inch displays. We also offer complete mechanical dimension customization for new kiosk designs.
A: Shopping mall interiors typically have 300-800 lux ambient lighting. We recommend 500-1000 nits for standard mall kiosks, and 1500 nits for units placed near glass entrances or windows where sunlight exposure is possible.
A: Yes. Optional chemically strengthened cover glass with anti-scratch coating resists scratches from fingernails, rings, and stylus contact. IK-rated impact protection and IP65 front sealing are available for additional durability in high-traffic installations.
A: With larger screen area, restaurants display complete menus including categories, item descriptions, and customization options without scrolling---reducing average order time by up to 30% compared to smaller displays. Customers complete orders faster, improving throughput during peak hours.
A: We can customize mounting provisions and cable routing to accommodate payment terminals (PIN pads, card readers, NFC readers) within the same kiosk enclosure. Interface shielding is also available to prevent electromagnetic interference between the display and payment peripherals.
A: PCAP (Projected Capacitive): Recommended for indoor retail, restaurant, and hospitality kiosks where users interact with bare fingers or thin gloves. Supports multi-touch gestures like swipe and pinch.
5-Wire Resistive: Recommended for outdoor, industrial, or gloved-use kiosks where users may wear thick gloves or use styluses. Reliable in dusty and oily environments.
Looking for a reliable 21.5 Inch Open-Frame Touchscreen Monitor for your next self-service kiosk project?
SKY-TDM specializes in providing fully customized OEM and ODM display solutions for kiosk manufacturers. Based on your specific requirements, our engineers will recommend the optimal LCD panel, touch technology, optical treatment, brightness level, interface configuration, and mechanical layout.
To help us quickly provide a tailored proposal for you, please share the following details:
• Required display size
• Touch technology preference (Projected Capacitive PCAP or Resistive)
• Target LCD brightness
• Deployment environment (Indoor / Covered Outdoor)
• Interface requirements
• Kiosk enclosure dimensions or mechanical drawings
• Estimated annual order volume
• Target market and required certifications
Our engineering sales team will respond within 24 hours with technical guidance, drawing support, and highly competitive pricing to help accelerate your product development.
