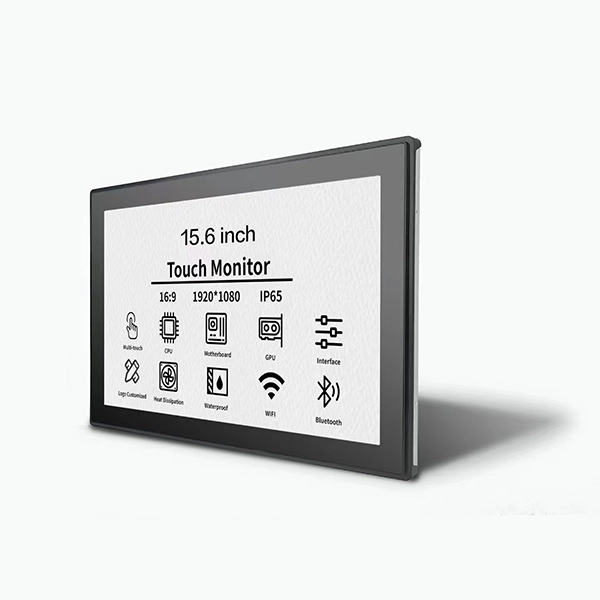

Modern CNC machining centers require more than a standard display. Operators depend on responsive human-machine interfaces (HMI) to monitor machining status, edit programs, view tool paths, and manage production efficiently. SKY-TDM's 15.6 inch open-frame touchscreen monitor has been developed specifically for demanding industrial automation environments, providing outstanding durability, image quality, and long-term operational stability.
Equipped with a 15.6-inch Full HD (1920 × 1080) industrial LCD panel, the monitor provides sharp visualization of machining parameters, CAD/CAM graphics, tool compensation tables, alarm information, and production dashboards. The 16:9 wide-screen format allows operators to display multiple interface windows simultaneously, improving workflow efficiency.
Unlike commercial displays, the monitor is engineered for continuous industrial operation. The rugged open-frame mechanical structure integrates easily into CNC control cabinets, operator panels, and industrial consoles while maintaining excellent heat dissipation and mechanical stability.
To ensure reliable operation inside CNC machine tools, SKY-TDM has optimized the monitor to address common industrial challenges:
- Industrial-grade LCD designed for continuous 24/7 operation.
- High-definition Full HD display for clear machining graphics and HMI visualization.
- Stable projected capacitive touch with optional glove-touch support.
- Reinforced internal structure to improve vibration resistance.
- Optical bonding technology reduces reflections and improves visibility.
- Flat front design simplifies daily cleaning and maintenance.
- High-brightness options available for demanding factory environments.
- Wide operating temperature suitable for industrial workshops.
- Low EMI design for stable communication with industrial control systems.
- Flexible customization for OEM machine manufacturers.

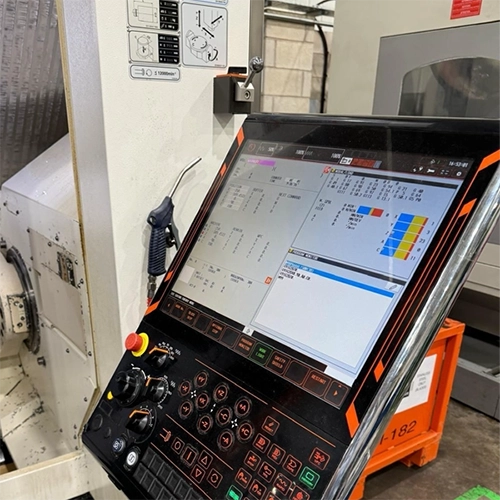

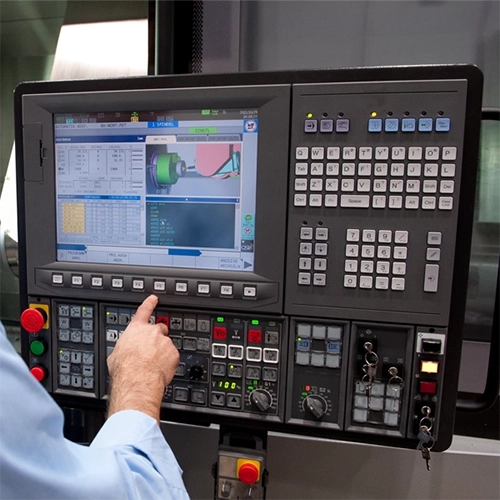

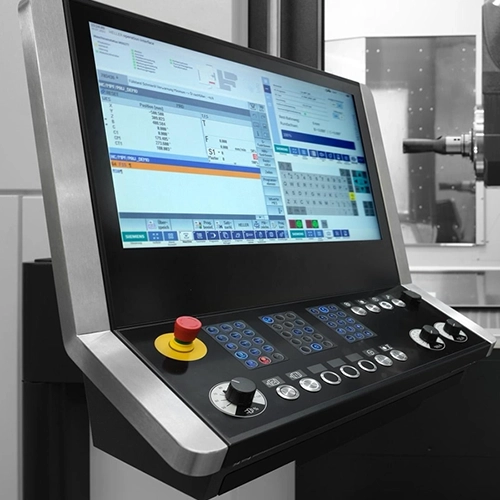

This 15.6 inch open-frame touchscreen monitor is widely used in high-end CNC machining centers, CNC lathes, milling machines, grinding machines, laser cutting machines, EDM equipment, industrial HMI panels, smart factory control systems, production line operator consoles, and various industrial automation equipment.
For high-end CNC equipment, SKY-TDM focuses on solving the real challenges faced by machine builders. We are fully equipped to address all the following challenges.
Machine tools generate continuous vibration during cutting. To improve reliability, the internal structure is reinforced, connectors are securely fixed, and industrial-grade electronic components are selected to maintain stable operation under long-term vibration.
Factories often contain coolant mist, lubricating oil, metal dust, and airborne particles. The front touch surface adopts a flat industrial design that is easy to clean, while optical bonding technology minimizes internal dust accumulation, reduces reflections, and improves display readability under bright factory lighting.
Operators frequently wear work gloves when operating machine tools. Our projected capacitive touch solution supports glove operation (customizable), allowing accurate touch input without interrupting production.
Industrial environments also require long operating hours. The display uses industrial LCD panels with long-life LED backlights to ensure stable brightness and color consistency throughout years of continuous production.
For equipment manufacturers serving global markets, SKY-TDM offers complete OEM/ODM customization services, including high-brightness displays, anti-glare (AG), anti-reflection (AR), anti-fingerprint (AF) surface treatment, optical bonding, customized front bezels, logo printing, interface modifications, firmware optimization, and complete display integration.
Whether used in vertical machining centers, horizontal machining centers, CNC lathes, grinding machines, laser cutting equipment, or intelligent manufacturing systems, the SKY-TDM 15.6 inch open-frame touchscreen monitor delivers the reliability and performance expected from modern industrial HMI solutions.

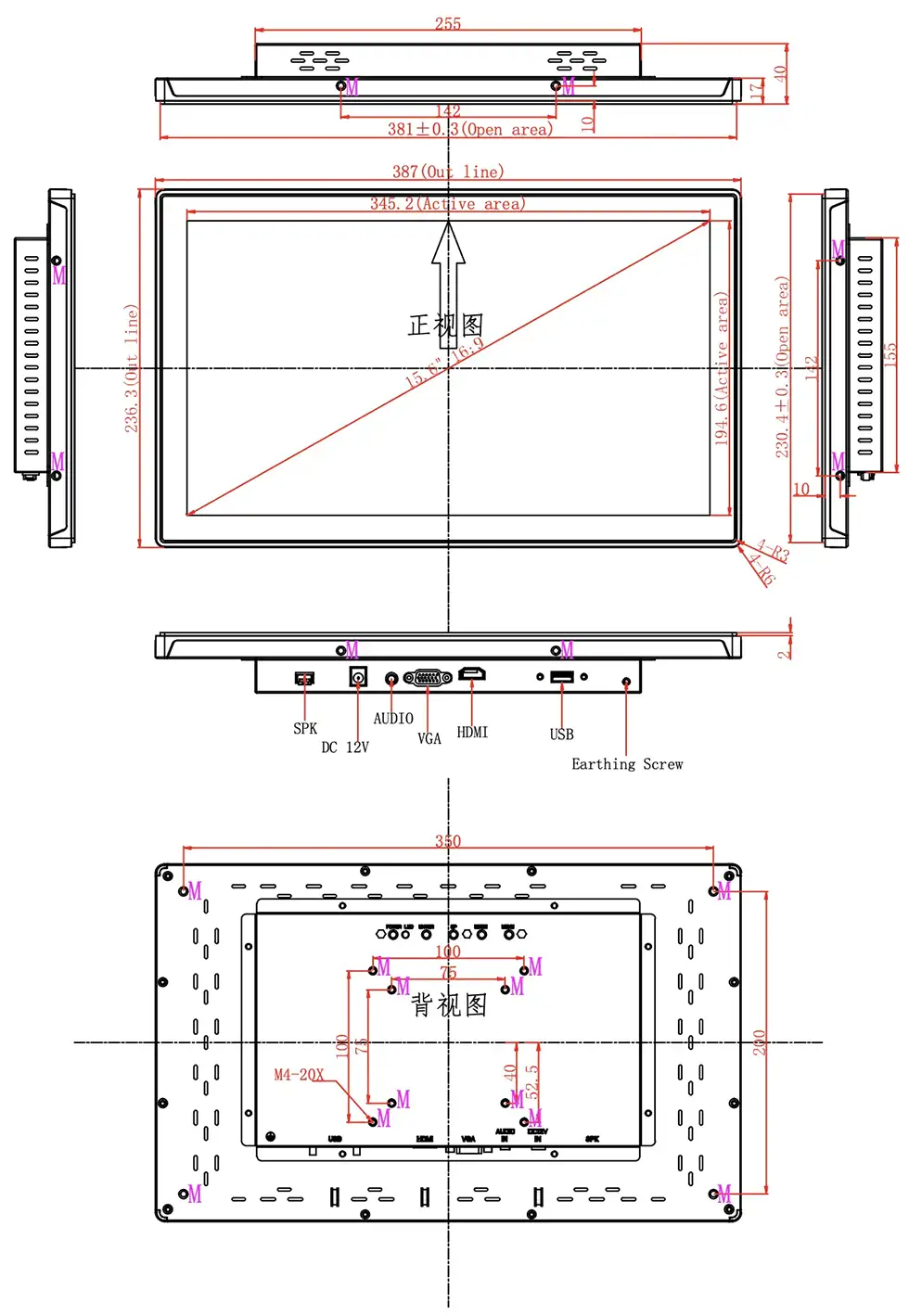

| Item | Specification |

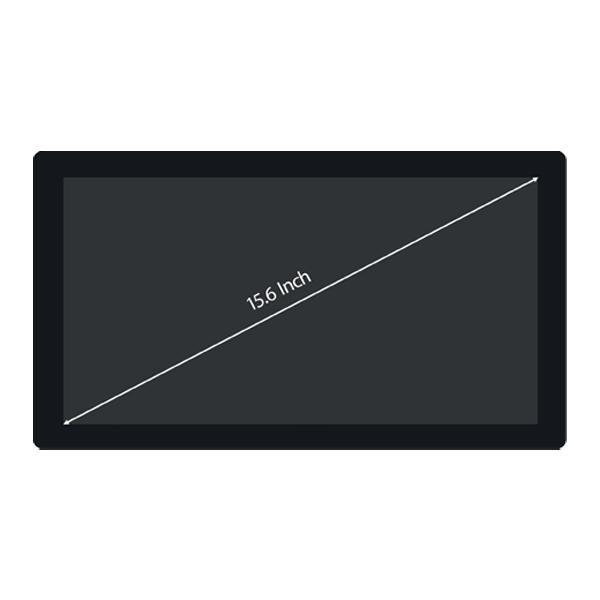

| Size | 15.6 Inch |
| Resolution | 1920x1080 / 1366x768 |
| Display Type | Industrial LCD |
| Touch Technology | PCAP |
| Touch Interface | USB |
| Video Input | HDMI/VGA or customized interfaces |
| Power Supply | DC 12V |
| Optional Features | Optical Bonding, AG/AR/AF Glass, High Brightness, Glove Touch |
| Customization | Housing, Cable, Firmware, Logo, Interface |
Backed by decades of industry experience, we are deeply committed to industrial touch display solutions, making us a trusted partner for CNC machine manufacturers worldwide.
✅ Industry Specialization
We specialize in open-frame touch monitors for industrial automation, backed by profound expertise in CNC workshop environments, vibration resistance, EMC standards, and long-term continuous operation requirements. Our engineering team deeply understands the real-world challenges faced by machine builders.
✅ Professional Customization Support
From mechanical outline modifications, cover glass coating & silk printing, to touch parameter tuning and interface adjustments, we provide turnkey OEM/ODM services. We can tailor our solutions to perfectly match your cabinet structures and control systems.
✅ Proactive Technical Support
Our engineers provide comprehensive support throughout your entire project lifecycle, including schematic consultation, sample verification, design optimization, and after-sales technical assistance.
✅ Global Compliance Support
We can develop products that comply with CE, RoHS, REACH, and other regional certification requirements, helping you smoothly expand into overseas markets.
Quality stability is the top priority for industrial HMI deployed on CNC equipment. Every unit follows strict quality control workflows:
🔹 Component Screening: Only industrial-grade LCD panels, touch ICs and electronic components are selected, eliminating consumer-grade parts.
🔹 Continuous Aging Test: All finished monitors undergo long-duration burn-in testing to screen early failures.
🔹 Environmental Validation: Optional high-low temperature cycling, vibration test and dust-proof reliability testing for custom industrial versions.
🔹 Strict Functional Inspection: Touch accuracy calibration, display uniformity check, interface communication testing and appearance inspection before packing.
🔹 Traceable Production Records: Each batch keeps complete testing archives for quality tracking.
🔹 Consistent Long-Term Supply: Stable component sourcing guarantees prolonged product lifecycle, saving OEMs repeated redesign costs.
A: Yes. We support comprehensive customization of touch panels, driver boards, enclosures, and other components, all tailored to your specific requirements.
A: Yes. Our internal structure and mounting layout are reinforced to withstand recurring vibrations produced during cutting operations.
A: Standard ports include HDMI, VGA, USB Touch, Audio, and DC 12V power input. Additional interfaces can be engineered as custom orders.
A: Yes. Multiple brightness grades are offered, including industrial high-brightness models designed for environments with strong ambient lighting.
A: Absolutely. We provide chemically strengthened glass with optional AG (anti-glare), AR (anti-reflection), and AF (anti-fingerprint) coatings. Custom sizes, shapes, and logo printing are also supported.
A: Our industrial display series maintains long product lifecycles, helping equipment OEMs avoid the extra costs and inventory risks associated with frequent redesigns.
Are you developing a new CNC machine, industrial HMI, or automation control system?
SKY-TDM provides comprehensive OEM and ODM solutions for 15.6 inch open-frame touchscreen monitor, serving industrial equipment manufacturers worldwide.
To help us recommend the best solution for your needs, please provide the following details:
- Display size and resolution
- Touch technology (PCAP or Resistive)
- Interface requirements (HDMI, VGA, DP, Type C)
- Brightness requirement
- Installation method and mounting dimensions
- Operating temperature range
- Expected annual demand
- Application (CNC Machine, HMI, Automation, Laser Cutting, etc.)
- Project schedule
Our engineering team will provide technical recommendations, mechanical drawings, customization proposals, samples, and competitive quotations to help accelerate your equipment development.
