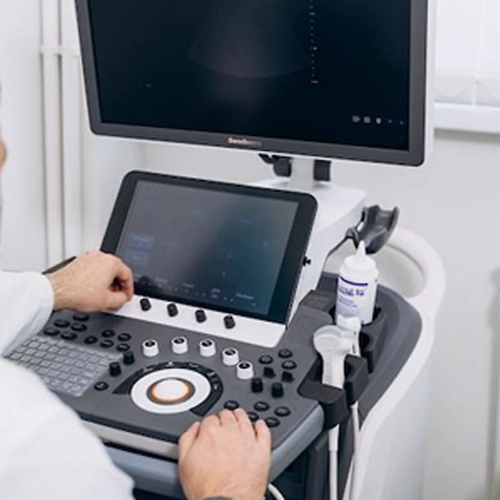

Medical ultrasound diagnostic equipment requires high-precision, high-stability secondary touch displays to streamline clinical workflows, boost examination efficiency, and optimize human-machine interaction experience. SKY-TDM's 13.3 Inch Capacitive Touch Screen Panel USB IIC is professionally developed to match the rigorous demands of ultrasound diagnostic scenarios.
Adopting industrial-grade projected capacitive (PCAP) touch technology, this touch panel supports fluent 10-point multi-touch operation while maintaining over 88% high light transmittance and exceptional structural durability. We provide customizable AG (anti-glare), AR (anti-reflective), and AF (anti-fingerprint) surface coatings for the cover glass, effectively reducing light reflection, eliminating fingerprint residues, and significantly improving screen visibility under strong indoor clinical lighting.
Our professional full optical bonding process completely removes the air gap between the touch panel and LCD module, greatly enhancing display contrast, reducing internal light reflection, and delivering ultra-clear ultrasound image and control interface viewing effects from multiple angles for medical staff.
The built-in touch controller supports dual USB and I2C communication modes, with full compatibility with Windows, Linux, Android, and all mainstream embedded operating systems widely applied in medical ultrasound equipment. Customizable firmware programming realizes practical medical functions including glove touch support, water rejection, palm rejection, and adaptive touch sensitivity adjustment, fully adapting to various clinical operation scenarios.
Designed for round-the-clock industrial and medical operation, this touch screen maintains stable and accurate touch output even in electrically noisy medical environments. Optimized medical-grade EMC performance effectively resists electromagnetic interference from internal imaging circuits and power systems of ultrasound equipment, avoiding touch drift and failure. Consistent with industrial medical touch industry standards, our products feature wide temperature adaptability, high-hardness cover glass, and ultra-long service life reliability.

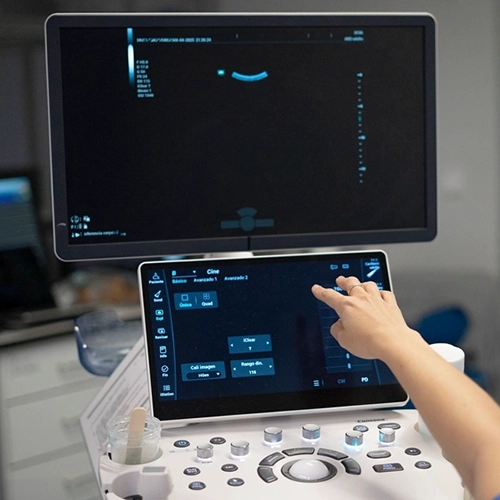

This touch screen is exclusively optimized for ultrasound secondary display scenarios, matching the operating logic and functional needs of medical ultrasound software, delivering sensitive, accurate, and stable touch control for clinical diagnostic operations.
Optional full optical bonding technology eliminates internal screen reflection and improves display contrast significantly. Professional surface coating treatments ensure clear screen visibility even under strong hospital ambient light, solving the problem of blurred viewing in bright clinical environments.
Industrial PCAP touch sensor features high positioning accuracy and ultra-low latency response, supporting smooth multi-touch gesture operations. It effectively reduces operation fatigue for medical staff and improves overall diagnostic efficiency.
Built with industrial-grade materials and optimized structural design, the touch panel resists vibration, temperature fluctuation, and electromagnetic interference. It supports 24/7 continuous stable operation, fully adapting to long-term high-intensity working environments of medical equipment.
We provide all-round personalized customization covering touch sensor design, glass processing, firmware tuning, interface configuration, brightness matching, and mechanical structural integration, to perfectly match customers' unique equipment design requirements.
With stable raw material sourcing and long-term mass production support, our medical touch solutions avoid frequent product iteration and equipment redesign risks, perfectly matching the long-cycle production and upgrading needs of medical devices.
| Item | Specification |
| Size | 13.3 inch |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | Up to 10 point |
| Interface | USB/IIC |
| Surface Hardness | ≥6H |
| Surface Treatment | AG/AR/AF |
| Operating Temperature | -20°C ~ +70°C |
| Industry Certifications | RoHS/REACH/ISO Certified Manufacturing |
This 13.3 inch Capacitive Touch Screen Panel USB IIC is widely applicable to various professional medical diagnostic and monitoring equipment:
- Ultrasound Secondary Display Systems

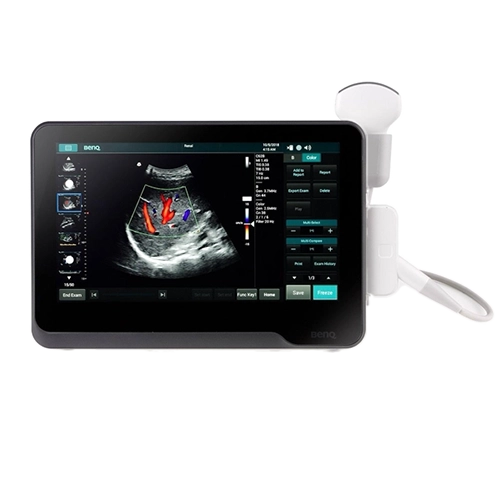

- Portable Ultrasound Scanners
- Diagnostic Ultrasound Equipment
- Color Doppler Ultrasound Devices
- Professional Medical Imaging Consoles
Hospital ultrasound touchscreens must ensure medical-grade safety, anti-bacterial surfaces, and EMI shielding. They require high brightness for visibility under surgical lights, glove-compatible touch sensitivity, and IP-rated liquid resistance. Reliability and easy cleaning are critical for clinical use. By optimizing the internal wiring design and working with the customer on EMI rectification, we have completely resolved these issues.
SKY-TDM focuses on personalized medical touch display solutions, providing exclusive customized services for every medical project to meet differentiated market and equipment needs:
- Custom touch panel structural design and development
- Integrated LCD + touch panel optical bonding service
- Medical-grade antibacterial and high-hardness cover glass customization
- Professional medical equipment EMC electromagnetic compatibility optimization
- IP-rated waterproof and dustproof structural design
- AG anti-glare, AR anti-reflective, AF anti-fingerprint coating processing
- High-brightness display module integration and calibration
- Flexible USB/I2C interface matching and customization
- FPC length, shape and pin definition customization
- Touch driver firmware optimization and adaptive tuning
- Brand logo, silkscreen pattern and frame color customization
- Product packaging personalized customization
- Medical project NPI whole-process technical support
- Long-term stable raw material supply and production guarantee
All SKY-TDM medical touch screens undergo rigorous multi-process quality testing before delivery to ensure 100% qualified product performance and meet international medical and industrial quality standards:
- 100% full-touch function test & verification
- Precision optical appearance inspection
- Touch controller programming and compatibility verification
- Touch linearity and positioning accuracy test
- Environmental reliability simulation test
- High-temperature aging durability test
- Low-temperature storage and adaptability test
- Professional packaging drop resistance test
Our production factory strictly implements standardized quality management systems:
- ISO9001 International Quality Management System Certification
- ISO13485 Medical Device Quality Management System Certification
- RoHS Environmental Compliance Standard
- REACH Safety Compliance Standard
- Strict incoming material inspection & screening
- Full production process traceability management
We are a professional manufacturer focusing on R&D, production and customization of industrial and medical-grade touch display solutions. We have rich project experience serving global medical equipment brands and industrial customers, providing reliable one-stop touch display services:
- 10+ years of professional industrial and medical touch screen R&D and manufacturing experience
- Full-process OEM & ODM customized solution services
- Independent in-house touch sensor R&D and production workshop
- Professional automatic optical bonding production line
- Professional engineering team providing one-on-one technical design support
- Rich mature medical ultrasound equipment supporting project experience
- Stable and perfect global supply chain system
- Fast prototype sample production and rapid iteration capability
- Extended product lifecycle and long-term stable supply guarantee
- 24/7 global professional technical after-sales support
We provide full-lifecycle comprehensive after-sales support for all customized and standard medical touch screen products, eliminating customers' after-sales worries:
- 12-month standard global warranty service
- Custom extended warranty service available on request
- Free driver integration and system compatibility guidance
- Professional mechanical structure design consultation and optimization suggestion
- Custom firmware tuning and touch performance optimization
- Optical bonding process matching and technical guidance
- Fast prototype sample production and testing
- Exclusive custom FPC development and design
- Precision touch sensitivity tuning and function customization
- Product reliability verification and certification assistance
- Worldwide safe and efficient shipping support
- Professional medical-grade shockproof and dustproof packaging
- Flexible delivery cycle arrangement to match customer project schedules
A: Ultrasound secondary displays require touch screens that do not interfere with the primary diagnostic image quality. Our 13.3-inch panel features ≥88% transmittance and optional optical bonding to maintain image clarity. The AG/AR surface treatments prevent glare from surgical lighting, ensuring clinicians can view both the main diagnostic screen and secondary control panel without distraction.
A: No. Ultrasound machines generate high-frequency imaging signals that can interfere with standard touch controllers. Our medical-grade EMC optimized touch IC is specifically designed to operate alongside ultrasound imaging circuits without introducing electrical noise or affecting image quality. We verify this through comprehensive EMI testing with the touch panel powered on.
A: Yes. Our cover glass supports daily cleaning with 75% alcohol, quaternary ammonium compounds, and chlorhexidine-based disinfectants commonly used in ultrasound departments. The surface coating resists chemical corrosion without compromising touch sensitivity.
A: Optical bonding eliminates the air gap between the touch panel and LCD, reducing internal reflection by up to 90%. For ultrasound secondary displays, this means clearer visibility of control interfaces and patient data under bright examination room lighting, with no fogging during temperature changes.
A: Yes. We offer flexible interface options (USB/IIC/SPI) and firmware configurations to match different ultrasound system architectures. The same hardware can be adapted to GE, Philips, Siemens, Mindray, and other diagnostic ultrasound platforms through controller firmware customization.
A: Medical ultrasound equipment typically has a 7-10 year clinical deployment cycle. We provide long-term component supply agreements and lifecycle notifications to prevent EOL (end-of-life) obsolescence. Critical components are stocked to support field replacements throughout the equipment's service life.
A: While ultrasound gel is not intended for touch operation, our touch panel supports wet-finger operation. In clinical practice, sonographers may have residual gel on their fingers, and our water-rejection algorithm prevents false touches from moisture or gel residue.
A: Yes. For ultrasound equipment manufacturers, we provide comprehensive EMI test reports, schematics for integration, and engineering support during system-level EMC certification. We work with customers to ensure the touch panel passes medical device compliance standards (IEC 60601-1-2).
Looking for a reliable 13.3 Inch Capacitive Touch Screen Panel USB IIC supplier?
SKY-TDM provides industrial-grade capacitive touch screen solutions with complete customization, fast engineering support, and long-term production capability. Contact our engineering team today to discuss your OEM or ODM project and receive a customized solution tailored to your application.
