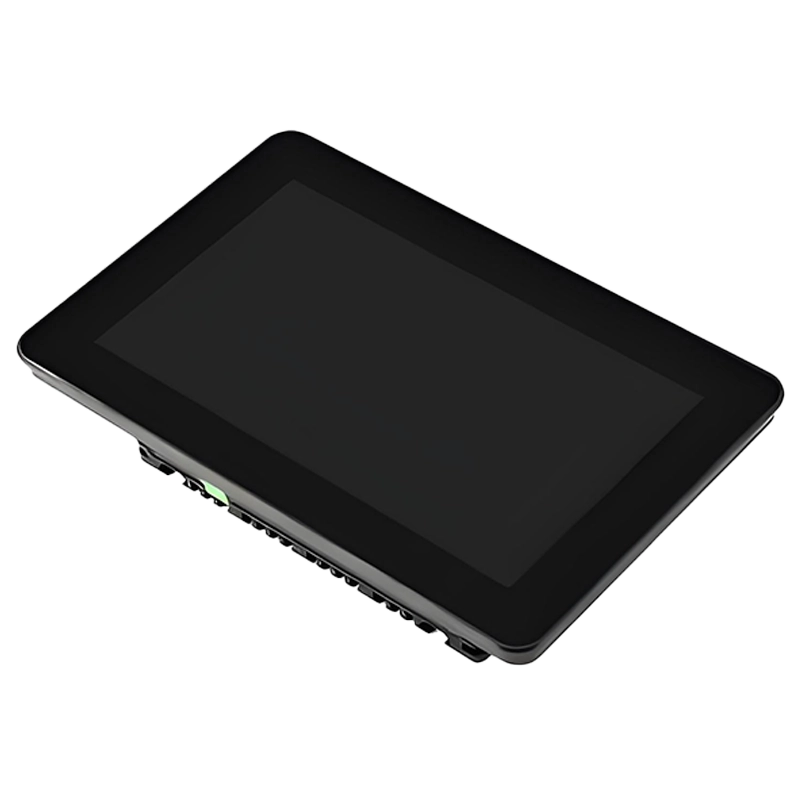

The 7 Inch Capacitive Touch Screen Panel USB IIC is designed for professional Human Machine Interface (HMI) applications requiring long-term reliability, precise touch performance, and stable operation in demanding industrial environments.
Built with projected capacitive (PCAP) technology, this touch panel delivers fast multi-touch response, excellent optical clarity, and exceptional durability. It supports optical bonding, waterproof sealing, glove operation, and custom interface development, making it suitable for industrial automation equipment, factory control systems, medical devices, transportation systems, and intelligent terminals.
As a professional industrial touch screen manufacturer, SKY-TDM provides complete OEM and ODM customization, helping customers reduce development time while ensuring high product consistency and long service life.
Industrial HMI equipment requires touch screens capable of operating continuously in harsh environments.
Our 7 Inch Capacitive Touch Screen Panel USB IIC is engineered to deliver:
- Stable touch performance under continuous operation
- Excellent sunlight readability after optical bonding
- High sensitivity with thick cover glass
- Reliable operation while wearing industrial gloves
- Waterproof and dustproof front panel solutions
- Strong resistance to EMI and ESD interference
- Wide operating temperature support
- Long product lifecycle for industrial projects
Whether integrated into PLC systems, industrial control panels, or machine automation interfaces, the touch panel provides reliable interaction throughout the product lifetime.
| Item | Specification |
| Touch Technology | Projected Capacitive (PCAP) |
| Screen Size | 7 inch |
| Interface | USB/IIC |
| Multi-touch | Supported |
| Cover Glass | Customizable |
| Surface Treatment | AG/AR/AF/AS optional |
| Controller IC | Optional |
| EMC | Industrial Grade |
| Waterproof | Optional |
| Operating Temperature | Customizable |
| OEM/ODM | Supported |
| Certification | According to customer requirements |
- Multi-touch support
- Fast and accurate touch response
- Smooth gesture operation
- High durability
- Excellent linearity
Optical bonding minimizes internal reflections and significantly improves display visibility.
Benefits include:
- Higher brightness
- Better outdoor readability
- Improved shock resistance
- Reduced condensation
- Enhanced viewing angles
The controller firmware can be optimized for various operating conditions.
Available modes include:
- Finger touch
- Industrial glove touch
- Wet finger operation
- Thick cover glass operation
Suitable for demanding industrial applications.
Typical options include:
- IK impact resistant cover glass
- Chemically strengthened glass
- AG Glass
- AR Glass
- AF coating
- EMC optimization
- ESD protection
| Factor | USB | I2C |
| Data Transfer Speed | Up to 480 Mbps | Up to 400 kbps (Standard) / 3.4 Mbps (High-speed) |
| Cable Length | Up to 5 meters | Limited to <1 meter (PCB traces) |
| Host Compatibility | Plug-and-play on most OS | Requires driver integration |
| Best For | Standalone HMI, rapid prototyping | Embedded systems, custom hardware with space constraints |
Which interface should you choose?
USB is recommended for standalone HMI panels and rapid prototyping, offering plug-and-play compatibility with Windows, Linux, and Android systems.
I2C is the better choice for deeply embedded systems with strict space constraints, offering lower BOM cost and more direct hardware control.
Every kiosk project has unique mechanical and electrical requirements.
We provide complete OEM customization including: Touch panel & Cover Glass & Mechanical Design & Custom Interface Solutions and Services
Every touch screen undergoes strict quality inspection before shipment.
Quality control includes:
- Touch linearity testing
- Optical inspection
- Functional testing
- Full appearance inspection
Manufactured under ISO quality management systems, ensuring stable quality for industrial applications.
This 7-inch capacitive touch screen solution was developed for Kunlun, a well-known domestic HMI and industrial automation brand, for integration into their CNC equipment and industrial control panels. The project required a touch panel that could deliver consistent multi-touch performance while supporting thick cover glass and glove operation in factory environments.
Our engineering team provided customized firmware tuning to optimize touch sensitivity for the customer's specific cover glass thickness and operating conditions. AG (Anti-Glare) and AF (Anti-Fingerprint) surface treatments were applied to improve outdoor readability and reduce maintenance frequency. The solution supports both USB and I2C interfaces to accommodate the customer's diverse system architectures.
The product successfully passed all validation tests and has been in mass production, with ongoing supply supporting the customer's expanding product lines across multiple industrial automation applications.
Our manufacturing system complies with internationally recognized quality standards:
- ISO 9001 -- Quality Management System
- ISO 13485 -- Medical Device Quality Management
- IATF 16949 -- Automotive Quality Management
These certifications ensure strict manufacturing control, traceability, and consistent product quality for industrial, medical, and automotive applications.
- Standard 12-month warranty
- Extended warranty available for OEM projects
- Technical support throughout the product lifecycle
- Fast engineering response
- Sample evaluation support
- RMA service available
- Long-term product supply
- Engineering customization assistance
We provide comprehensive one-stop customization solutions, fully tailored to your specific design and development requirements. With highly flexible cooperation models and a low Minimum Order Quantity (MOQ), our services are perfectly suited to meet the unique needs of industrial clients.
A: Yes. We can optimize the firmware for glove operation.
A: Yes. We offer complete touch display modules including LCD, touch screen, optical bonding, controller boards, and interface cables.
A: USB, I2C, UART, and customized interfaces are available.
Looking for a reliable 7 Inch Capacitive Touch Screen Panel USB IIC supplier?
SKY-TDM provides industrial-grade capacitive touch screen solutions with complete customization, fast engineering support, and long-term production capability. Contact our engineering team today to discuss your OEM or ODM project and receive a customized solution tailored to your application.
