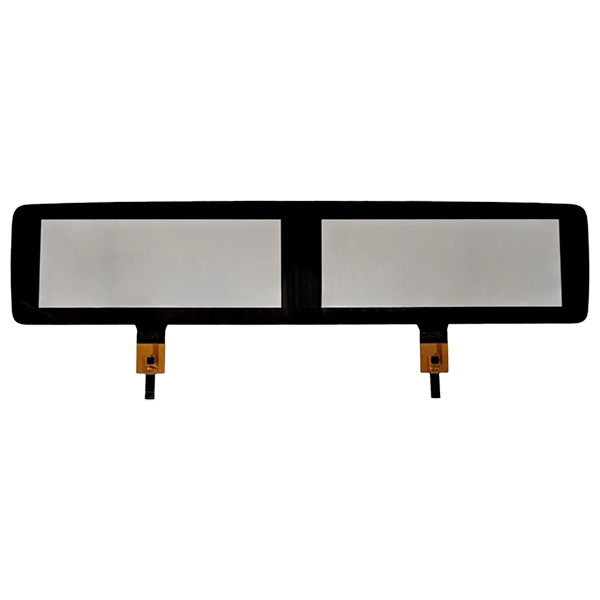

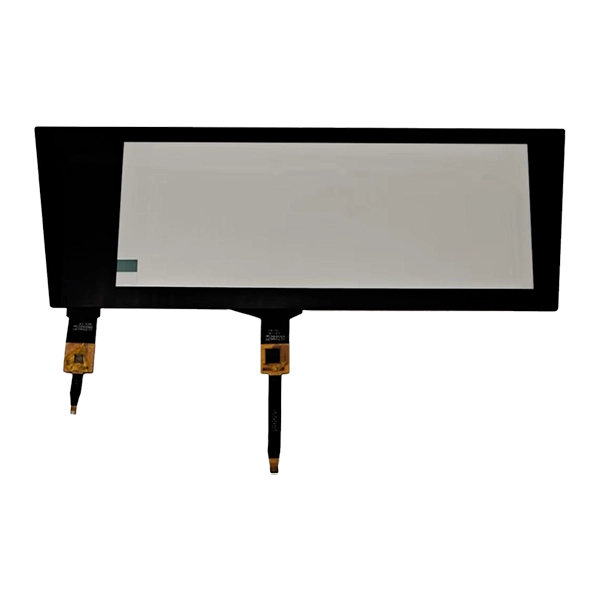

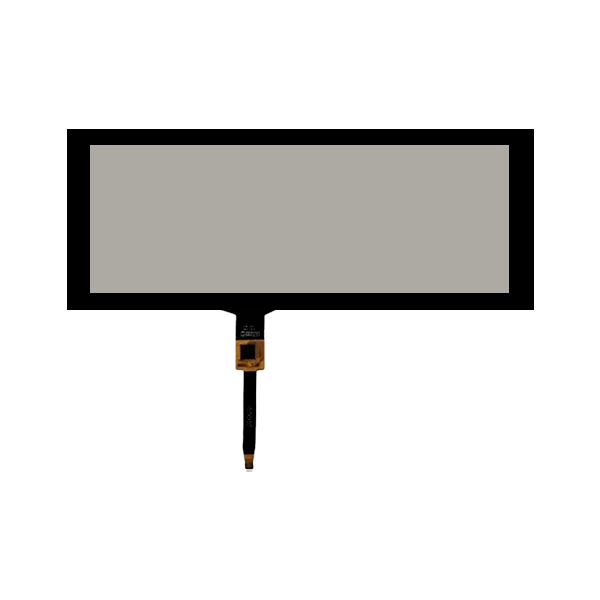

SKY-TDM's 12.3 Inch Automotive Capacitive Touch Screen Panel IIC USB is engineered exclusively for mass-production passenger EVs, premium vehicles, commercial trucks, buses and off-highway machinery cockpits. Unlike consumer-grade car touch screens, our touch sensors comply with strict automotive environmental standards, balancing ultra-responsive multi-touch performance, superior optical clarity and long-term vibration & thermal cycle reliability.
This touch panel series serves core automotive HMI scenarios: full digital instrument clusters, main center stack infotainment, navigation units, HVAC control panels and integrated EV smart cockpit displays. The core PCAP sensor structure supports full optical bonding assembly, customizable waterproof sealing, and glove/wet touch activation to adapt to all real driving conditions.
We deliver fully customizable touch solutions covering cover lens styling, surface coating, touch controller matching, FPC layout, EMC shielding optimization and LCD display pairing. Backed by years of dedicated automotive touch engineering experience, SKY-TDM provides full OEM & ODM one-stop service, from early concept prototyping, reliability validation to volume mass production. We partner closely with global auto OEMs and Tier1 suppliers to develop stable, compliant human-machine interface hardware for vehicle interior digitalization.
1. Strict Automotive-Grade Reliability
Validated for long-term operation under extreme vibration, mechanical shock and wide temperature cycling, meeting core automotive environmental durability requirements for 8-10 year vehicle lifecycles.
2. High-Speed 10-Point Multi-Touch Performance
10-finger simultaneous touch support with <10ms ultra-fast response, stable touch accuracy even under vehicle electrical interference.
3. Customizable Optical Bonding Integration
- Eliminates air gap between touch sensor and LCD
- Drastically reduces surface reflection & boosts sunlight legibility
- Reinforces structural impact resistance
- Blocks internal fogging & condensation in temperature swings
4. Premium Optical Performance
≥88% high light transmittance, consistent color reproduction, ultra-low reflectivity and ultra-wide viewing angles for driver & passenger visibility.
5. Dual Glove & Wet Touch Functionality
Optional hardware firmware upgrade supports glove operation and moisture rejection, stable touch output on rainy, humid driving scenarios.
6. Heavy-Duty Surface Durability
6H hardness scratch-resistant cover glass, anti-fingerprint/anti-glare coatings optional, minimizing daily abrasion damage during vehicle service life.
7. Automotive EMC & ESD Compliance
Built-in customizable EMC shielding design to suppress vehicle power system electromagnetic noise, fully compatible with new energy EV high-voltage cockpit environments.
8. End-to-End Full Customization
Fully tailor every component of the touch panel module:
- Cover glass shape, thickness & silk-screen decorative printing
- AG / AR / AF functional surface coatings
- Touch controller chip (EETI / ILITEK / Goodix or custom IC)
- FPC routing, interface definition (USB / IIC / SPI)
- Waterproof sealing structure & optical bonding assembly
- Matching LCD screen brightness & dimension
| Item | Standard Specification | Customizable Option |
| Diagonal Size | 12.3 Inch | Custom cut shape available |
| Touch Technology | Projected Capacitive (PCAP) | N/A |
| Supported Touch Points | Up to 10 points | N/A |
| Communication Interface | USB/IIC | SPI, custom dedicated interface |
| Touch Controller IC | EETI/ILITEK/Goodix | Custom brand controller firmware |
| Cover Glass Hardness | ≥7H | Custom thickness (1.1mm / 1.8mm / 2.0mm+) |
| Light Transmittance | ≥88% | AG/AR coating to adjust transmittance |
| Touch Response Time | <10ms | Tunable via controller |
| Operating Temperature Range | -30°C ~ +85°C | Extended ultra-wide temp grade |
| Optical Bonding | Unbonded touch panel | Full OCA optical lamination service |
| Surface Functional Coatings | Bare glass | Anti-Glare (AG), Anti-Reflection (AR), Anti-Fingerprint (AF) |

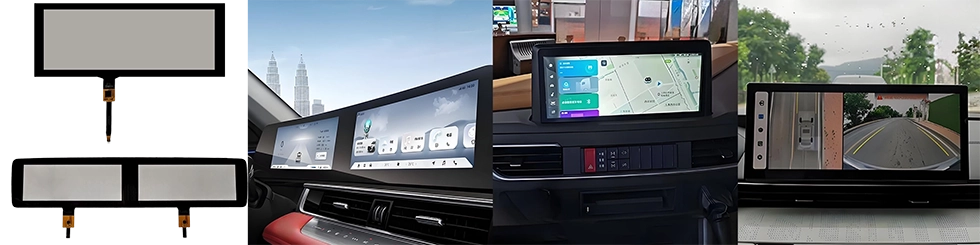

Passenger & Electric Vehicles
Digital Instrument Cluster, Central Stack Infotainment Display, EV Smart Cockpit, Navigation Touch Screen, HVAC Climate Control Panel, Rear Passenger Entertainment Display
Automotive applications represent the most demanding use cases, requiring products to withstand extreme heat, severe vibrations, high humidity, and other complex conditions. Our products have undergone comprehensive application certifications. To combat high temperatures, we select premium materials and advanced solutions, while also effectively mitigating the instability and potential damage caused by vibrations.
SKY-TDM delivers comprehensive customization for automotive touch modules, empowering global OEMs and Tier 1 partners with:
✓ Custom Cover Glass: Precision shape and contour cutting
✓ Decorative Finishes: Silk-screen printing & custom logo etching
✓ Functional Coatings: AG / AR / AF multi-layer surface treatments
✓ Optical Bonding: Full OCA lamination & Touch-LCD assembly
✓ Display Integration: Matched LCD sourcing & seamless integration
✓ FPC Customization: Tailored layout, length, & connector definitions
✓ Firmware Tuning: Touch controller optimization (Glove & Wet-Touch enabled)
✓ EMC Shielding: Custom electromagnetic interference (EMI) shielding layouts
✓ Waterproof Design: Comprehensive mechanical sealing solutions
✓ Wide-Temp Hardware: Tuned for ultra-wide temperature grades
✓ High-Brightness Displays: Optimized LCD pairing for outdoor vehicular equipment
Every automotive touch panel module undergoes 100% serial inspection and full reliability validation before delivery:
1. Touch Function Calibration & Accuracy Test
2. Optical Transmittance & Uniformity Inspection
3. High-Temperature Endurance Aging Test
4. Low-Temperature Storage & Operation Test
5. Rapid Thermal Cycling Shock Test
6. Continuous Vibration & Mechanical Shock Test
7. Long-Run Power Aging Durability Test
8. Full Waterproof Sealing Performance Test (custom models)
9. Complete Batch Final Visual & Functional Inspection
1. Proven Automotive Tier1 Project Track Record
Dedicated R&D team with long-term experience serving global vehicle cockpit HMI projects, fully familiar with automotive design validation workflows.
2. Vertically Integrated In-House Manufacturing
Independent PCAP touch panel production lines + in-house optical bonding workshop + matched LCD sourcing; one single supplier for complete touch display modules, no third-party coordination risk.
3. Flexible OEM & ODM Customization
All mechanical, optical, electrical and functional parameters adjustable to match unique automotive model requirements.
4. Multi-Year Stable Long Lifecycle Supply
We maintain long-term raw material inventory for automotive projects to avoid component EOL shortages during vehicle production cycles.
5. Professional Dedicated Automotive Engineering Support
Electronics, optical and structural engineers provide full technical support throughout prototype, validation and mass production phases.
6. Fast Turnaround Prototyping Service
Short lead time for custom touch panel samples to accelerate customer vehicle project development schedules.
7. Global B2B Automotive Customer Service
Dedicated overseas sales & technical support team to serve North American & European automotive system integrators with cross-timezone communication support.
● Standard 12-month global product warranty
● Permanent long-term technical engineering consultation support
● Fast-track RMA failure analysis & replacement service
● Flexible international logistics & bulk shipment solutions
● Remote engineer debugging & parameter tuning assistance
● Multi-year long-lifecycle component supply commitment for automotive models
● Complete official technical datasheets, test reports and validation documentation
A: Yes. This series is exclusively developed for automotive cockpit HMI (Human-Machine Interface) systems. It is engineered to withstand wide temperature ranges, severe vibrations, and vehicular electromagnetic interference, making it fundamentally different from consumer-grade touch products.
A: It is designed for digital instrument clusters, center stack infotainment screens, vehicle navigation displays, HVAC climate control panels, and highly integrated EV smart cockpit systems. Additionally, it is compatible with commercial vehicles (trucks and buses) as well as off-road machinery terminals.
A: Absolutely. We provide comprehensive OEM & ODM customization services, covering cover glass aesthetics, surface coatings, touch functionalities, circuit layouts, optical bonding, and matched LCD modules.
A: Yes. Depending on project requirements, we can enable glove touch and anti-moisture wet-touch functions through custom touch controller firmware.
A: Yes. We offer integrated optical bonding services, seamlessly laminating the touch sensor with the LCD to enhance sunlight readability and improve the overall structural strength of the module.
A: We support two supply modes: standalone bare PCAP touch panels, or fully integrated optical bonded touch display assemblies paired with matched LCD screens.
A: Standard interfaces include USB and IIC. For customized controller development, SPI and dedicated custom interfaces are also available.
A: All units support continuous operation in temperatures ranging from -30°C to +85°C. For extreme working conditions, we can also customize enhanced anti-vibration structures, waterproof sealing designs, and EMI (Electromagnetic Interference) shielding structures.
A: We offer long-lifecycle supply agreements for our automotive customers. By stocking critical core components, we guarantee a stable supply throughout the entire production lifespan of the vehicle model (typically 8-10 years).
Whether you need a standard off-the-shelf 12.3 Inch Automotive Capacitive Touch Screen Panel IIC USB or a fully customized optical bonded touch display module for your EV or commercial vehicle program, SKY-TDM delivers end-to-end automotive engineering support covering concept design, prototype sampling, reliability validation and mass-volume manufacturing.
Reach out to our automotive specialist team today to request official technical datasheets, engineering samples or a tailored bulk quotation for your Tier1 & OEM vehicle cockpit project.
