In professional clinical scenarios, medical displays serve as the core human-machine interface (HMI) for all healthcare equipment. From the real-time monitoring of patients' vital signs and the dynamic presentation of ECG and respiratory waveforms, to the high-definition imaging analysis of ultrasound and endoscopic systems, the accuracy, stability, and clarity of the display directly impact clinical decision-making, patient safety, and the efficiency of medical workflows.
Hospital environments impose unique and stringent performance requirements on displays. They must support uninterrupted long-term operation, maintain consistent image quality from multiple viewing angles, ensure stable brightness under strong indoor lighting, possess excellent anti-interference capabilities to meet medical EMC standards, and offer an ultra-long service life that aligns with medical equipment iteration cycles. Ordinary commercial displays, plagued by unstable imaging, short lifespans, and poor environmental adaptability, simply cannot meet the rigorous standards of professional medical settings.
As a professional medical touch screen supplier, we provide expert LCD selection and integrated touch-display solutions, strictly adhering to international medical standards in our product design and optimization. Our mature touch-display integration solutions have already served the vast majority of medical device manufacturers in China. Our products cover critical medical equipment, including patient monitors, ventilators, ECG machines, infusion pumps, and IVD instruments.
We offer a complete range of medical-grade LCD modules in various sizes, covering all mainstream medical equipment scenarios---from miniature portable devices to large diagnostic workstations. This ensures precise matching for diverse clinical applications.
| Display Size Range | Typical Medical Equipment Applications |
| 2.4" -- 3.5" | Syringe pumps, blood glucose meters, miniature portable medical devices, handheld diagnostic tools |
| 4.3" -- 5.0" | Infusion pumps, portable patient monitors, mobile clinical terminal devices |
| 7.0" | Ventilators, portable ECG monitors, mini ultrasound systems, bedside auxiliary equipment |

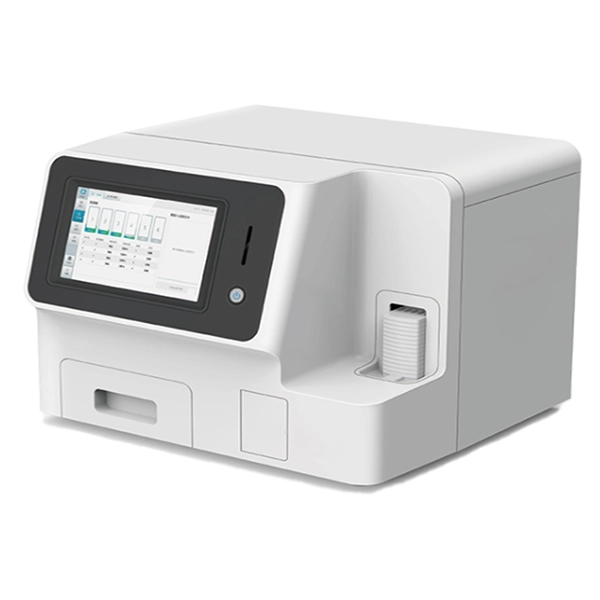

| 8.0" -- 10.1" | Multi-parameter patient monitors, medical HMI control terminals, laboratory analysis instruments |
| 10.4" -- 12.1" | ICU high-precision monitors, professional ventilators, dialysis treatment systems, anesthesia machines |
| 13.3" -- 15.6" | Medical ultrasound diagnostic equipment, endoscopy imaging systems, biological detection analyzers |
| 18.5" -- 23.8" | Medical diagnosis workstations, high-definition imaging diagnostic systems, central monitoring equipment |

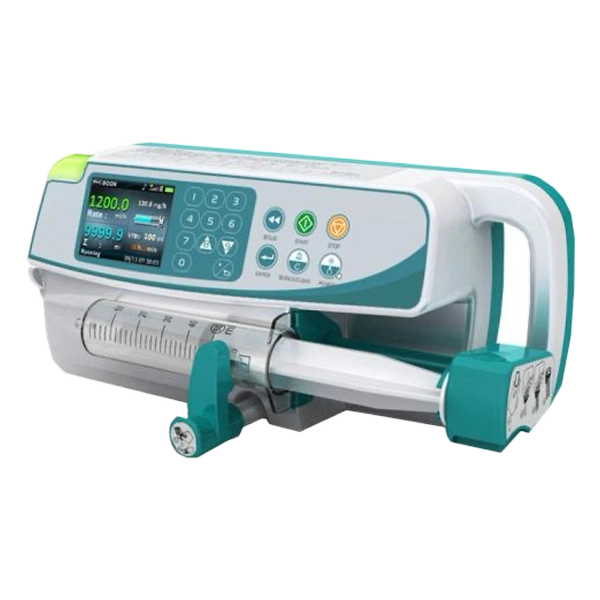

Due to the specific product characteristics of infusion and syringe pumps, they can only accommodate small-sized LCD screens, typically ranging from 2.4 to 4.3 inches, which deliver ultra-clear digital data and real-time status prompts. The screen can stably display core parameters, including drug dosage, infusion/injection rate, remaining working time, and fault alarm information.

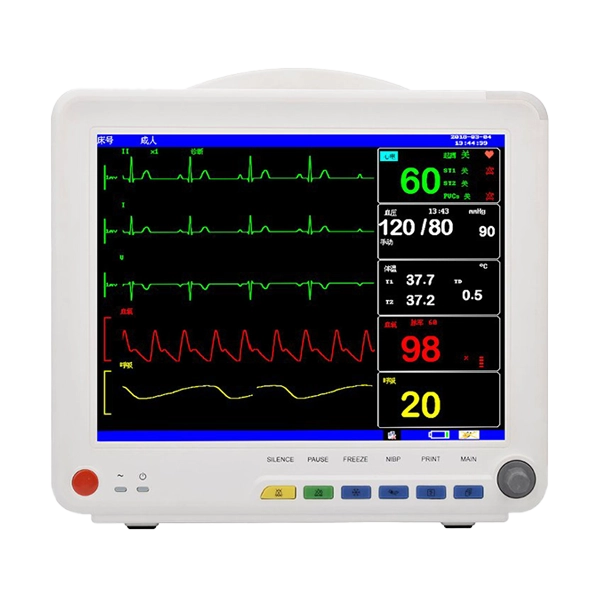

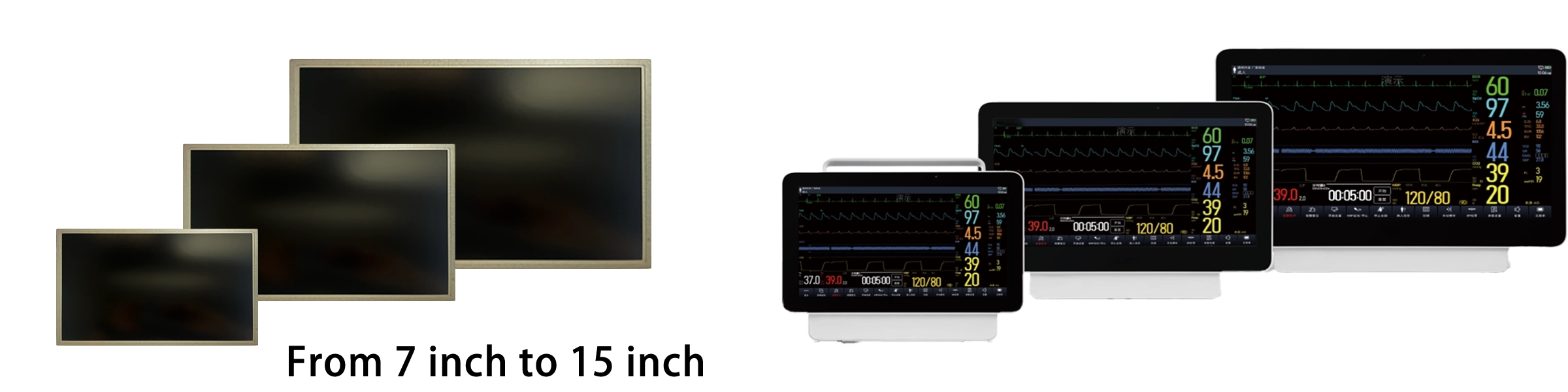

We can provide a variety of sizes tailored to customer needs, including 7-inch, 10.1-inch, 10.4-inch, 12.1-inch, and 15-inch options, all specially optimized for bedside monitoring equipment. The screens accurately present real-time ECG waveforms, heart rate, blood pressure, SpO₂, respiratory rate, body temperature, and key alarm data. Featuring high-contrast imaging technology and an IPS wide-viewing-angle design, the displays support clear viewing from multiple angles for medical staff. They also maintain stable image output during long-term, uninterrupted operation, perfectly adapting to the continuous monitoring demands in wards and ICUs.

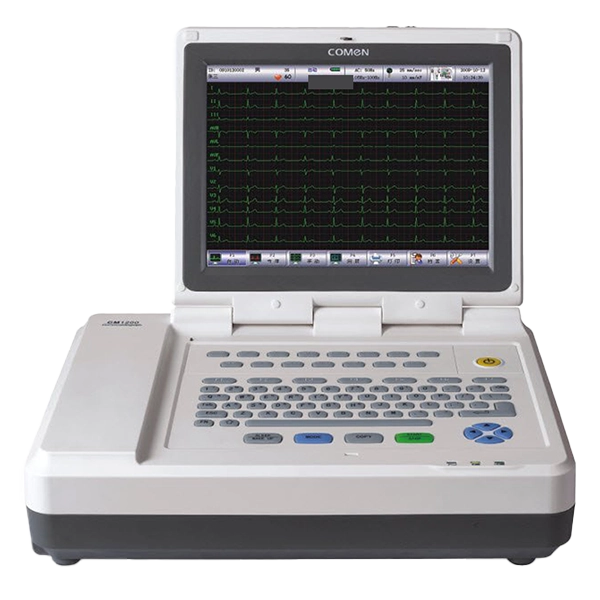

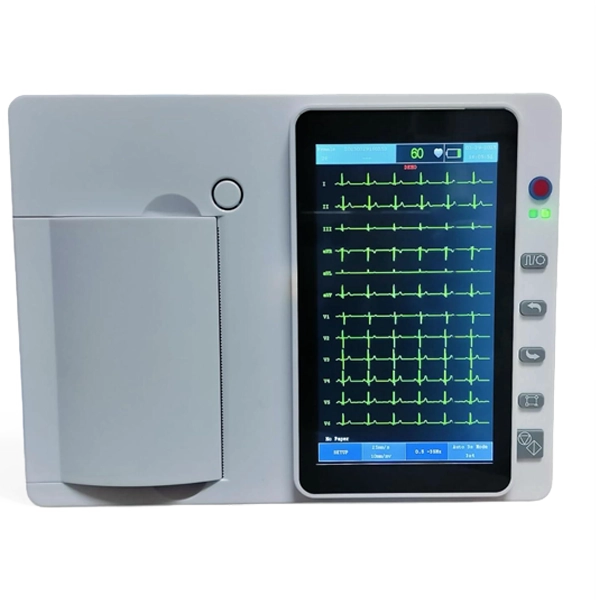

Electrocardiograph (ECG) equipment offers optional professional-grade displays ranging from 7 to 12.1 inches, with a core focus on high-precision waveform restoration. The screen clearly presents high-resolution ECG waveforms, diagnostic analysis data, patient information, and measurement results. Optimized color consistency and grayscale restoration technologies ensure the precise rendering of waveform details. Meanwhile, the ultra-wide viewing angle design effectively eliminates color distortion and blurring, providing reliable visual support for doctors' ECG diagnosis and analysis.

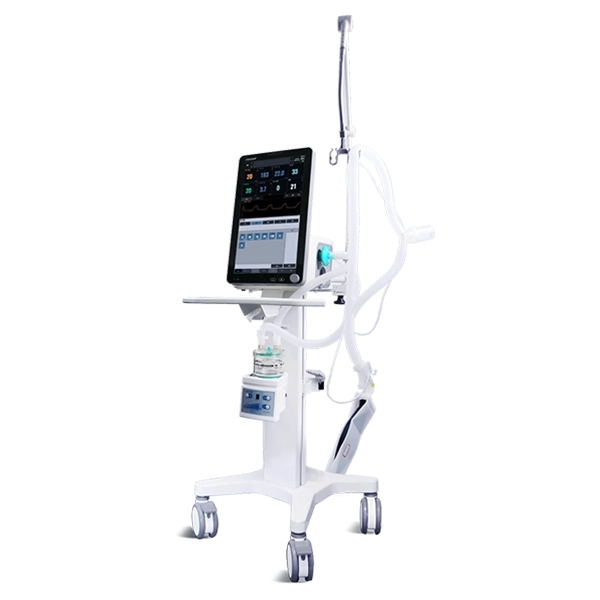

Ventilator equipment ranges from home-use to hospital-grade devices, which have significantly different display requirements. Currently, we recommend medical displays in sizes such as 5-inch, 7-inch, 12.1-inch, 15.6-inch, and 17-inch. These displays feature a core focus on the real-time and accurate presentation of respiratory data.
The screens can dynamically display pressure curves, flow curves, volume curves, ventilation mode parameters, oxygen concentration, and equipment alarm status. With sensitive touch response, excellent anti-interference performance, and the capability for 24/7 stable operation, this series of displays fully meets the high-reliability requirements of emergency treatment and long-term mechanical ventilation scenarios.

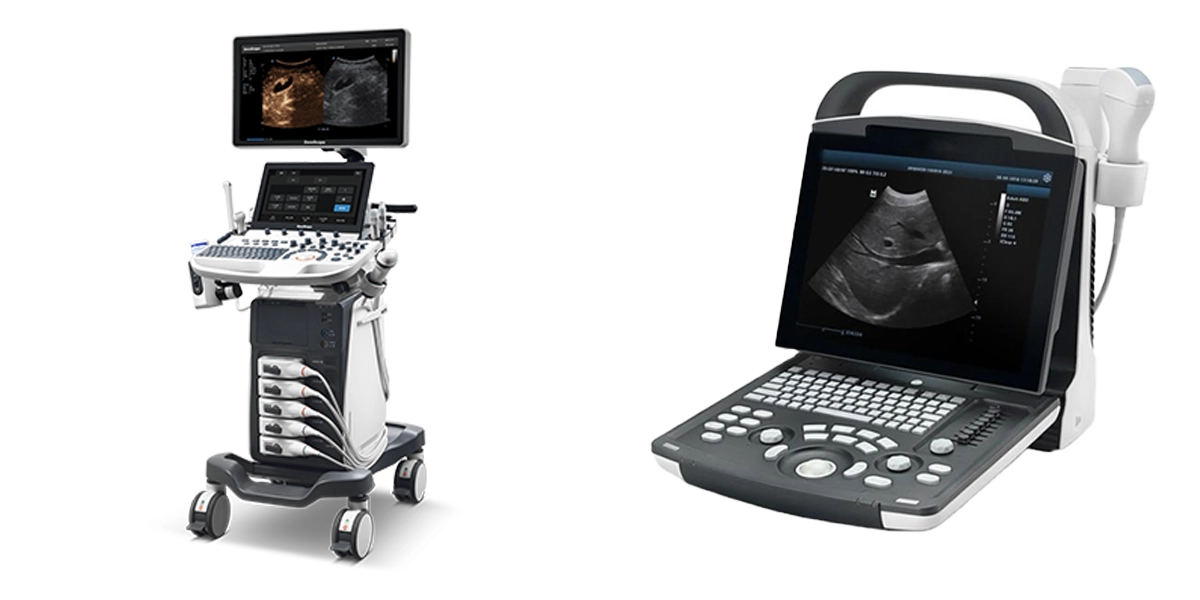

Ultrasound diagnostic equipment offers optional medical displays in sizes such as 13.3-inch, 15-inch, 15.6-inch, 21.5-inch, and 23.8-inch, covering secondary displays, portable ultrasound systems, and primary displays. This series of screens is equipped with high brightness, high contrast, and precise grayscale calibration technology, which perfectly restores ultrasound grayscale images and color Doppler imaging details. They also support real-time image processing and the display of parameter measurement interfaces.
Featuring uniform brightness, stable color reproduction, and a wide viewing angle, these displays ensure consistent imaging performance from different viewing positions, assisting doctors in making accurate assessments of lesions.
Medical clinical scenarios have extremely strict threshold requirements for display performance, which cannot be replaced by ordinary industrial and commercial displays. Our products are professionally optimized to address the pain points in medical equipment application scenarios:
- Ultra-Long Product Lifecycle & Stable Supply: Medical equipment typically has a service life of 7 to 10 years. We provide long-term supply reservation services for our medical display models and will proactively identify alternative solutions for our clients one year prior to any LCD panel discontinuation. This effectively avoids the costs associated with equipment redesign and mold replacement caused by product obsolescence.
- 24/7 Uninterrupted Operation: Our medical LCD screens support long-term continuous power-on operation, perfectly adapting to non-stop working scenarios in hospitals, ICUs, and laboratories.
- IPS Wide Viewing Angle & Stable Imaging: The 178° ultra-wide viewing angle achieves zero color shift and zero distortion, ensuring clear viewing for medical staff from all angles. Consistent color and brightness calibration guarantee long-term image stability.
- Adjustable High Brightness: We offer customizable brightness options ranging from 300 to 1000 nits, adapting to brightly lit indoor hospital environments as well as outdoor portable medical equipment usage scenarios.
- Low Power Consumption Design: Optimized LED backlight and circuit structures effectively reduce power consumption, thereby extending the battery life of portable and handheld medical devices.
- Professional Optical Bonding Technology: Optional full lamination technology improves screen contrast and sunlight readability while enhancing dustproof, moisture-proof, and anti-condensation capabilities, ultimately increasing overall mechanical durability.
- Medical-Grade EMC Anti-Interference Design: The circuits are optimized for electromagnetic compatibility, allowing seamless integration into medical equipment. They meet stringent medical EMC standard requirements, preventing signal interference that could compromise diagnostic accuracy.
- Diversified Medical-Grade Touch Solutions: Supporting capacitive touch, resistive touch, waterproof touch, and glove-compatible touch, these displays adapt to various clinical operation scenarios, including operations with sterile gloves and use in wet environments.
We provide specialized customization services for medical equipment manufacturers, covering appearance structure, optical performance, electrical functions, and supporting development to meet the differentiated design requirements of various medical devices. (Note: We highly recommend customers to select original modules.)
Hardware Customization: Brightness adjustment, cover glass thickness, and surface treatment.
Optical Customization: AG (anti-glare), AR (anti-reflection), and AF (anti-fingerprint) coatings, as well as professional optical full lamination.
Functional Customization: Multi-type touch panel integration, interface conversion and expansion, and EMI (electromagnetic interference) optimization.
Structural Customization: Custom mechanical frames and waterproof/dustproof structural design.

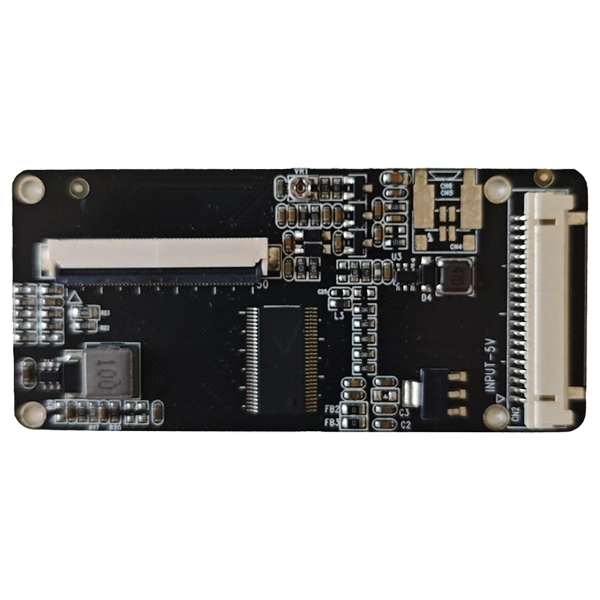

Supporting Development: Custom driver board development, firmware debugging, and cable customization.
Full-Service Support: Comprehensive ODM/OEM solution customization from prototyping to mass production.
Our recommended medical-grade LCD modules are compatible with all mainstream medical embedded systems and equipment platforms, which simplifies secondary development and equipment integration for our clients.
Supported interfaces include: RGB, LVDS, eDP, SPI.

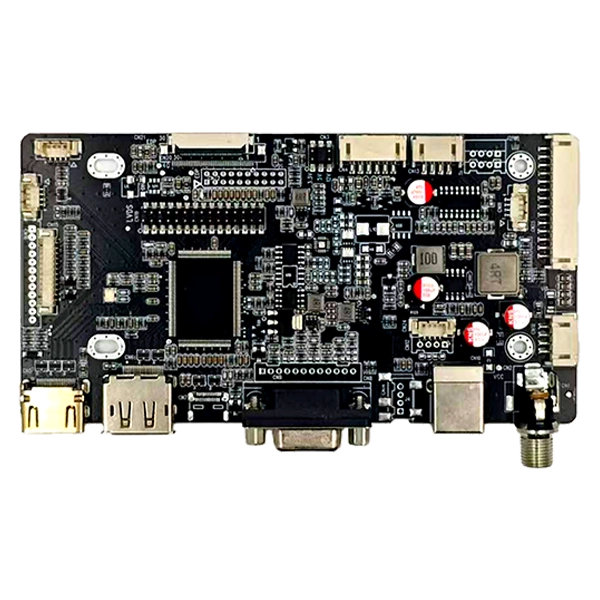

In addition, we provide customized interface adaptation and matching driver board solutions, aiming to help clients shorten product development cycles and enhance overall equipment compatibility.
All our medical display solutions undergo comprehensive and rigorous reliability testing before delivery to ensure stable and compliant operation in long-term clinical scenarios:
- High & low temperature endurance testing, thermal shock testing, constant humidity and heat testing
- Vibration testing, drop impact testing, ESD electrostatic protection testing
- Medical EMC electromagnetic compatibility testing
- Long-term backlight aging testing, 24/7 continuous operation reliability verification
Multi-dimensional quality inspection effectively guarantees the long-term stability and safety of medical displays, meeting the strict quality control requirements of the healthcare industry.
- Complete product size range: 2.4"--23.8" medical-grade LCD modules, covering all clinical equipment scenarios
- One-stop integrated service: Integrate LCD display, touch panel, optical bonding, driver board and assembly customization
- Professional medical customization: Support full-process OEM/ODM personalized solution development
- Long-term stable supply: Exclusive medical product lifecycle management to eliminate supply interruption risks
- Strict medical quality control: Fully compliant with healthcare industry reliability and EMC standards
- Flexible interface adaptation: Compatible with mainstream medical equipment platforms, reducing integration costs
- Professional engineering support: Provide full-process technical guidance from design, prototype verification to mass production
A: We offer a full range of medical-grade displays from 2.4 to 23.8 inches, comprehensively covering miniature portable devices, bedside clinical equipment, and large medical diagnostic workstations.
A: Yes. We provide customized integration solutions for capacitive touch, resistive touch, waterproof touch, and glove-compatible touch to match various clinical operation scenarios.
A: They are compatible with mainstream medical industrial interfaces, including RGB, LVDS, eDP, and SPI. Custom interface development is also supported.
A: Absolutely. We offer brightness options ranging from 300 to 1000 nits, perfectly adapting to brightly lit hospital wards, outdoor portable devices, and other scenarios.
A: Yes. Professional optical full lamination technology significantly improves screen contrast and enhances dustproof, moisture-proof, and anti-condensation performance, making it highly suitable for high-standard medical applications.
A: Yes. We support custom cover glass thickness, AG (anti-glare) / AR (anti-reflection) / AF (anti-fingerprint) coatings, surface silk-screen printing, and logo laser engraving to meet the aesthetic and functional requirements of medical equipment.
A: We focus on long-cycle medical project partnerships. We proactively provide alternative product replacements for our clients one year prior to any product discontinuation, effectively avoiding the risks associated with end-of-life (EOL) products.
A: They are widely used in infusion pumps, syringe pumps, patient monitors, ECG machines, ventilators, ultrasound systems, anesthesia machines, dialysis equipment, laboratory analyzers, and various medical HMI (Human-Machine Interface) terminals.
A: Yes. We offer one-stop finished solutions covering LCD modules, touch panels, cover glass, driver boards, customized cables, and comprehensive display assembly services.
A: Our professional medical display engineering team provides full-process support, including model selection, solution customization, equipment integration, performance verification, and mass production docking.
Are you looking for a reliable and professional medical-grade LCD display supplier for your medical device projects?
Whether you are developing portable infusion devices, bedside monitors, life-support ventilators, professional ECG equipment, or high-definition ultrasound diagnostic systems, SKY-TDM can recommend medical-grade display solutions that meet your technical parameters and industry regulatory requirements.
We provide free technical consultation, professional display solution recommendations, optical and mechanical design optimization, rapid prototyping, and highly competitive OEM/ODM quotation services. Please submit your project details, including display size, resolution, interface type, brightness requirements, touch function requirements, operating environment, and annual demand. Our technical team will provide a targeted solution and a formal quotation within 24 hours, helping to accelerate your medical product R&D and time-to-market.
